Product number: ELE003505

Be the first to review this product

Details

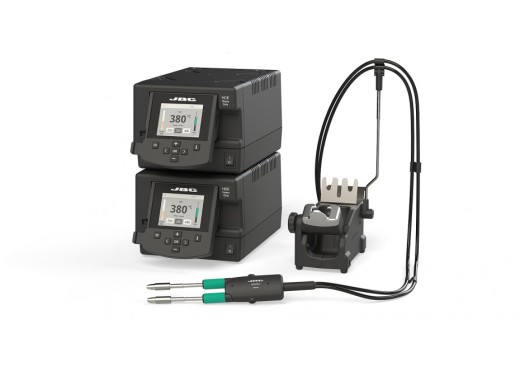

The JBC HDE-2KE heavy-duty tweezer station comes with 2 control units. These units are extremely powerful soldering units and have a peak power of 250W. The tweezer station is ideal when time needs to be saved because it has been designed to reduce the soldering time when a lot of heat is required. Like all JBC stations, this one also has a sleep and hibernation mode, which will make sure your tips can be used up to five times longer. The control unit has a 2.8" inch color TFT screen that can be tilted for easy reading. The HDE-2KE has an intuitive user interface which provides quick access to station parameters. With the use of the USB-A connector on the front of the station, it is possible to save your soldering process in CSV format onto a flash drive. This station is compatible with the C470 tips (these are not included).

The default 2-year warranty can be extended to 3 years by registering your device.

Specificaties

Temperature 90 ℃ - 450 ℃
Power 250 W
Voltage 42 V
Tip to ground resistance < 2 Ω
Tip to ground voltage < 20 mV RMS
Connections USB-A, USB-B, peripherals, RJ12 connector for Robot or for Fume extractor
Weight 7.27 kg
Dimensions 232 x 148 x 240 mm
Buy your C470 tips here

Accessories

The JBC HDE-2KE heavy duty tweezer station will be delivered including:

  • 2 control units
  • Thermal tweezers (HT470-A HD)
  • Stand (HDTS-E)
  • Tip holder (SCH-A)

Pros and cons

  • 2 control units
  • Tips not included
