1506 €1,506.00 Excl. VAT
Loading stock info
  •
Product number: ELE004409

Be the first to review this product

Details

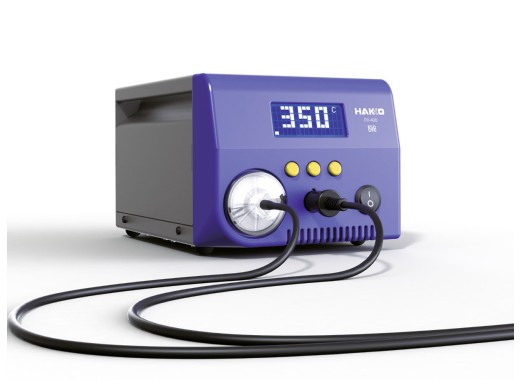

The Hakko FR-400 is a new and innovative desoldering station. With its massive power output of 300W and its high heat dissipation property, it is at the forefront of the new desoldering world! Desoldering has never been so easy! Desoldering jobs that required 2 persons before, can now be done singlehandedly with the built-in high-pressure suction pump. With the secure desoldering valve and the anti-clogging function, you will be able to have fun for a long time.

The Hakko FR-400 also has improved in its maintainability compared to other models in the Hakko series. The heater is easily removable by undoing 3 screws and the station also comes with a handy maintenance kit that includes cleaning pins, a nozzle wrench, and different filters. The filter on the FR-400 is also larger and more transparent. This filter enhances the flux adsorption property greatly and the transparency makes checking the filter condition way easier.

On top of that, the large LCD on the desoldering station makes it very easy to check the temperature and report potential clogging.

Different compatible N60 nozzles ensure that you can desolder any kind of solder joint. If you're interested, you can click the link below.

Buy your N60 desoldering nozzles here

Specifications

General:

Power consumption320 W
Temperature range 350 to 500 °C
Temperature stability± 5 °C

Station:

Output voltageAC 29 V
Vacuum generatorVacuum pump, double cylinder type
Vacuum pressureMax. 80 kPa
Suction flow15 L/min
Dimensions166 x 137 x 264 mm
Weight5.7 kg

Desoldering tool:

Power300 W
Cord length1.2 m
Total length (with nozzle)183 mm
Weight (with nozzle)270 g

Accessories

The Hakko FR-400 comes with:

  • Desoldering tool
  • Power cord
  • Iron holder with cleaning wire
  • Maintenance toolbox
  • N60-02 nozzle

Pros and cons

  • 300 W power output
  • ACF (Anti-Clogging Function)
  • Includes a maintenance kit
  • An investment
  • Only one N60 nozzle included

Downloads
