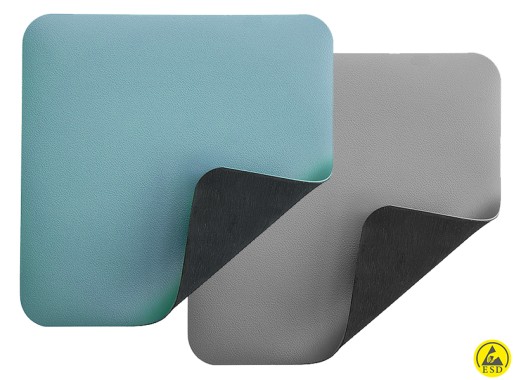

These ESD mats are of high quality and provide double-layer ESD protection (dissipation / conduction) to prevent static discharges. The 'bleeder' resistance of the mats is between 106 and 109 Ω. These are particularly low values.
The mats are heat and solder resistant, permanently elastic, wear-resistant and comfortable. In addition, the mats are 100% PVC and fully phthalate-free. The mat is 'anti-glare' and is resistant to chemicals and oil. The corners of the mat are rounded and at two width-corners (short side) the mat has a 10 mm round contact point to connect the mat to a general earth.
The mats are available in 2 sizes and colours. The dimensions are 600 x 900 mm or 600 x 1200 mm. The colours are grey or blue. They are only 2 mm thick.
Connector | 2 x 10 mm |
ESD - safe |
Yes
|
Datasheet ESD Premum table mat |
(209.24 KB) | Download |
