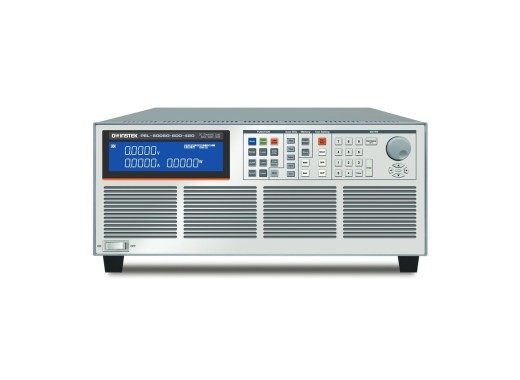

GW Instek PEL-5006G-600-420 electronic load
Details
The GW Instek PEL-5006G-600-420 is a 6000W electronic load capable of 600V and 420A. The PEL-5006G-600-420 can be used for battery testing, battery chargers, and EV's as the DC load is protected. The built-in slow starter prevents damage when directly connecting to high-voltage batteries or chargers. The load allows for short-circuit testing and automatic testing of overcurrent and overpower protection. The PEL-5006G-600-420 features four different battery discharge modes for battery charger testing, which are CV + current limit, CV + power limit, CC and CP mode. Additionally, in CC or CP mode, you can set the discharge cut-off voltage, discharge time or discharge capacity.
The load meets the verification requirements of different DUT's, with functions such as Surge current, OCP and OPP.- Voltage polarity can be set to a positive or negative value on the display. Finally, the load supports parallel connection of up to 8 units in CV, CC, CP and CR test modes to provide a maximum power of 48kW.
This product is also available as the Prodigit brand, which was acquired by GW Instek. It is 100% identical in form and function but carries Prodigit branding. Price and lead times may be more favorable so please contact us for a quote. Prodigit part number: 0PEL506G200GT
Model overview
| Models | Power | Max. current | Max. voltage | Slew rate | Price |
|---|---|---|---|---|---|
| PEL-5004G-150-400 | 4000 W | 400 A | 150 V | 0.0256 - 1.6 A/µs | |
| PEL-5005G-150-500 | 5000 W | 500 A | 150 V | 0.032 - 2 A/µs | |
| PEL-5006G-150-600 | 6000 W | 600 A | 150 V | 0.0384 - 2.4 A/µs | |
| PEL-5004G-600-280 | 4000 W | 280 A | 600 V | 0.01792 - 1.12 A/µs | |
| PEL-5005G-600-350 | 5000 W | 350 A | 600 V | 0.0224 - 1.4 A/µs | |
| PEL-5006G-600-420 | 6000 W | 420 A | 600 V | 0.02688 - 1.68 A/µs | |
| PEL-5004G-1200-160 | 4000 W | 160 A | 1200 V | 0.01024 - 0.64 A/µs | |
| PEL-5005G-1200-200 | 5000 W | 200 A | 1200 V | 0.0128 - 0.8 A/µs | |
| PEL-5006G-1200-240 | 6000 W | 240 A | 1200 V | 0.01536 - 0.96 A/µs |
Specifications
| Static modes | CC, CR, CV, CP |
| Dynamic modes | CC, CP, CR |
| Protection | OVP, OPP, OCP, OTP |
| Display | LCD |
| Dimensions | 177 x 440 x 745 mm |
| Weight | 28 kg |
Accessories
The PEL-5006G-600-420 includes:
- 1x 20A Vsense Red plug connector
- 1x 20A Vsense Black plug connector
- 4x Input and monitor pin terminals
- 1x 1.5m 15 pin M-M cable for Master/Slave control
- 1x Rack Mount Kit with washers and nuts (PEL-031)
- Declaration of traceable calibration
Pros and cons
- Powerful load with a current range up to 420A
- Has built-in battery discharge modes
- Can be used for battery testing, battery chargers, EV's
