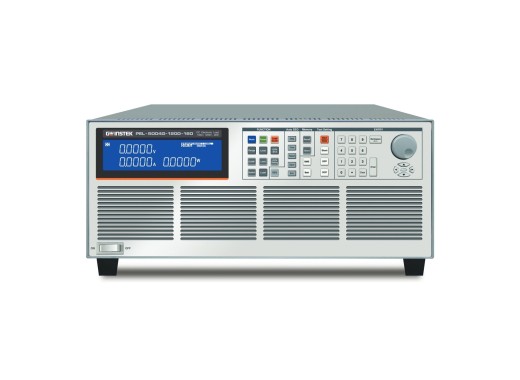

GW Instek PEL-5004G-1200-160 electronic load
Details
The GW Instek PEL-5004G-1200-160 is a 4000W electronic load capable of 1200V and 160A. The PEL-5004G-1200-160 can be used for battery testing, battery chargers, and EV's as the DC load is protected. The built-in slow starter prevents damage when directly connecting to high-voltage batteries or chargers. The load allows for short-circuit testing and automatic testing of overcurrent and overpower protection. The PEL-5004G-1200-160 features four different battery discharge modes for battery charger testing, which are CV + current limit, CV + power limit, CC and CP mode. Additionally, in CC or CP mode, you can set the discharge cut-off voltage, discharge time or discharge capacity.
The load meets the verification requirements of different DUT's, with functions such as Surge current, OCP and OPP. Voltage polarity can be set to a positive or negative value on the display. Finally, the load supports parallel connection of up to 8 units in CV, CC, CP and CR test modes to provide a maximum power of 48kW.
This product is also available as the Prodigit brand, which was acquired by GW Instek. It is 100% identical in form and function but carries Prodigit branding. Price and lead times may be more favorable so please contact us for a quote. Prodigit part number: 0PEL504G300GT
Model overview
| Models | Power | Max. current | Max. voltage | Slew rate | Price |
|---|---|---|---|---|---|
| PEL-5004G-150-400 | 4000 W | 400 A | 150 V | 0.0256 - 1.6 A/µs | |
| PEL-5005G-150-500 | 5000 W | 500 A | 150 V | 0.032 - 2 A/µs | |
| PEL-5006G-150-600 | 6000 W | 600 A | 150 V | 0.0384 - 2.4 A/µs | |
| PEL-5004G-600-280 | 4000 W | 280 A | 600 V | 0.01792 - 1.12 A/µs | |
| PEL-5005G-600-350 | 5000 W | 350 A | 600 V | 0.0224 - 1.4 A/µs | |
| PEL-5006G-600-420 | 6000 W | 420 A | 600 V | 0.02688 - 1.68 A/µs | |
| PEL-5004G-1200-160 | 4000 W | 160 A | 1200 V | 0.01024 - 0.64 A/µs | |
| PEL-5005G-1200-200 | 5000 W | 200 A | 1200 V | 0.0128 - 0.8 A/µs | |
| PEL-5006G-1200-240 | 6000 W | 240 A | 1200 V | 0.01536 - 0.96 A/µs |
Specifications
| Static modes | CC, CR, CV, CP |
| Dynamic modes | CC, CP, CR |
| Protection | OVP, OPP, OCP, OTP |
| Display | LCD |
| Dimensions | 177 x 440 x 745 mm |
| Weight | 28 kg |
Accessories
The PEL-5004G-1200-160 includes:
- 1x 20A Vsense Red plug connector
- 1x 20A Vsense Black plug connector
- 4x Input and monitor pin terminals
- 1x 1.5m 15 pin M-M cable for Master/Slave control
- 1x Rack Mount Kit with washers and nuts (PEL-031)
- Declaration of traceable calibration
Pros and cons
- Powerful load with a current range up to 160 A
- Has built-in battery discharge modes
- Can be used for battery testing, battery chargers, EV's
