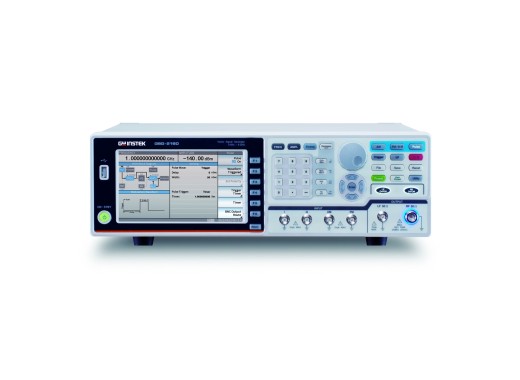

GW Instek GSG-2160-AUX RF signal generator
Details
The GW Instek GSG-2160-AUX is part of the high-end GSG-2000 series of RF signal generators. This device is designed for applications such as use in education, testing RF components like antennas and amplifiers, automotive signal testing and standard communications signal testing such as IoT, LTE and Bluetooth. The GSG-2000 series features a wide amplitude range from +20dBm to -140dBm with a frequency range from 9kHz to 6GHz. The pulse signal can simulate pulse wave applications of various widths. The LF output can be used to test circuit design and electronic components. The GSG-2160-AUX model also includes digital modulation.
This model is unique as it has enhanced stability with the AUX interface reaching 10ppb instead of the standard 10ppm and a lower ageing rate of 0.1ppm, instead of the default 2ppm.
Connectivity is flexible too, with USB, LAN and GPIB communication interfaces making it easy to integrate into automated test setups. The device fits a standard 3U rack. Finally, this model is equipped with a 7" TFT LCD.
Model overview
| Model | GSG-2060 | GSG-2060-AUX | GSG-2160 | GSG-2160-AUX |
|---|---|---|---|---|
| Digital modulation | No |
No |
ASK, PSK, APSK, QAM, FSK, MSK, user-defined IQ, user-defined FSK |
ASK, PSK, APSK, QAM, FSK, MSK, user-defined IQ, user-defined FSK |
| AUX interface | No
| Yes
| No
| Yes
|
| Price |
Specifications
| Bandwidth | 9 kHz - 6 GHz |
| Channels | 1 |
| Frequency resolution | 1 mHz |
| Output amplitude range | +20 dBm to -140 dBm |
| Amplitude accuracy | < 0.5 dB |
| Phase noise | < -117 dBc/Hz (Typical) @1 GHz |
| Modulation | AM, FM, PM |
| Built-in functions | Sine, square, triangle, ramp, gaussian noise |
| Trigger source | External, trigger key |
| Output impedance | 50 Ω |
| Interfaces | USB, LAN, GPIB |
| Display | 7" (1024x600) TFT LCD |
| Dimensions | 430 x 140 x 540 mm |
| Weight | 13 kg |
Accessories
- 1x power cord
- Declaration of traceable calibration
Pros and cons
- Wide amplitude range
- Enhanced stability
Downloads
| GSG-2000 datasheet |  (1.58 MB) | Download |
| GSG-2000 user manual | (11.37 MB) | Download |
| DTC sample | (126.04 KB) | Download |
