Details

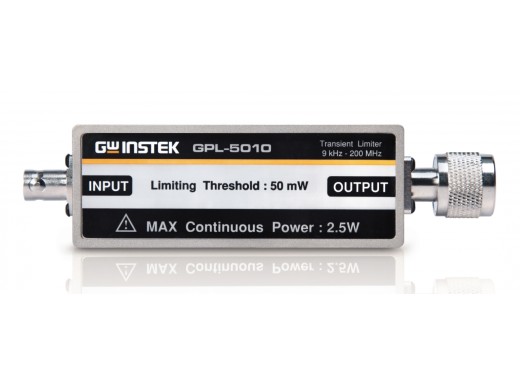

The GW Instek GPL-5010 is a transient limiter used to protect test equipment. By placing the limiter between the LISN and spectrum analyser during EMI tests, it offers protection to the spectrum analyser from overloading and large peaks. The GPL-5010 can withstand a continuous power of 2.5 W, or a pulsed power that is much higher. Additionally, this limiter is CE certified.

Specifications

Electrical specifications
Bandwidth 9 kHz - 200 MHz
Limit level 50 mW (+17 dBm)
System impedance 50 Ω
Maximum input level Continuous: 2.5 W (+34 dBm)
Pulse: 10 kW (10 µs)
DC: ±12 V
Insertion loss
< 2 kHz: > 30 dB
2 kHz - 6 kHz: > 13 dB
9 kHz - 50 MHz: 9.5 dB - 10.5 dB
50 MHz - 200 MHz: 9.5 dB - 12.2 dB
> 400 MHz: > 13 dB
Operating temperature 0 ℃ - 55 ℃
Storage temperature -40 ℃ - 80 ℃
Connectors Input: BNC (female)
Output: N (male)
Dimensions 118 x 44 x 23 mm
Weight 92 g

Accessories

The GPL-5010 comes by default with:

  • Warranty card
  • Test report

Pros and cons

  • HPF against power supply noise
  • CE certification
  • May require coaxial adapters
