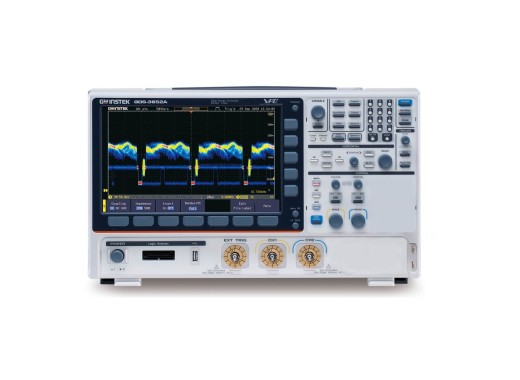

GW Instek GDS-3652A digital storage oscilloscope
Details
The GW Instek GDS-3652A digital storage oscilloscope is a dual channel 650MHz logic analyzer, with a 10.2” TFT LCD color display. It features a memory length for each channel up to 200Mpts. The advantage of such long memory is that it allows users to maintain high sampling rate even at low speed time settings. In high resolution mode, it allows low-noise signals under high-bandwidth measurements.
In addition, the internal search function can quickly find the signals that meet the conditions according to the needs of the test. For frequency domain measurement, it is equipped with a dual channel spectrum analyzer, which allows users to measure and analyze the frequency domain signals of two channels at the same time. It is also equipped with a spectrogram function, which allows users to easily observe complex frequency domain fluctuations.
It features 38 AC/DC power supply tests. It is also equipped with a dual-channel 25MHz arbitrary waveform generator and frequency response analysis function. In addition to the commonly used USB and LAN port, it also includes a highly stable RS232 interface and an optional GPIB interface.
Model overview
The GDS-3352A and GDS-3652A oscilloscopes differ in bandwidth and rise time.
| Model | GDS-3352A | GDS-3652A |
|---|---|---|
| Bandwidth | 350 Mhz | 650 Mhz |
| Rise time | 1 ns | 535 ps |
| Price |
Specifications
| Channels | 2 |
| Sample rate | 2.5 GSa/s (Shared) |
| Memory depth | 200 Mpts / Ch |
| Waveform update rate | 200,000 wfm/s |
| Trigger types | Edge, Pulse Width(Glitch), Video, Pulse Runt, Rise & Fall(Slope),Time out, Alternate, Event-Delay(1~65,535 events),Time-Delay(Duration, 4ns~10s), Bus |
| Vertical resolution (1MΩ) | 8 bit (max. 12 bit with Hi Res mode) |
| Vertical scale | 1mV ~ 10V/div |
| Serial bus trigger and decode | I2C, SPI, UART, CAN, LIN |
| Horizontal scale | 1 ns/div ~ 1000 s/div |
| Automatic measurement parameters | Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime, +Width, -Width, Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, %Flicker, Flicker Idx ,FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase |
| Cursors parameters | Voltage difference between cursors ( ΔV), Time difference between cursors ( ΔT) | .
| Display | 10.2" 800 x 480 TFT LCD color display |
| Connectivity | USB 2.0 (Host/Device), LAN, RS232, VGA,Go/NoGo BNC, GPIB (Optional) |
| Additional features | Kensington Style Lock, internal flash disk |
| Dimensions | 420 mm x 253 mm x 113.8 mm |
| Weight | 4.6 kg |
Accessories
The GW Instek GDS-3652A will be delivered including:
- Power cord
- 2x 500MHz 10:1 passive probes
- Declaration of traceable calibration
Pros and cons
- High memory length per channel
- Automatic signal search function
- Very fast vertical rise time
Downloads
| GW Instek GDS-3000A Manual |  (6.47 MB) | Download |
| GW Instek GDS-3000A Datasheet | (874.86 KB) | Download |
| DTC sample | (126.04 KB) | Download |
