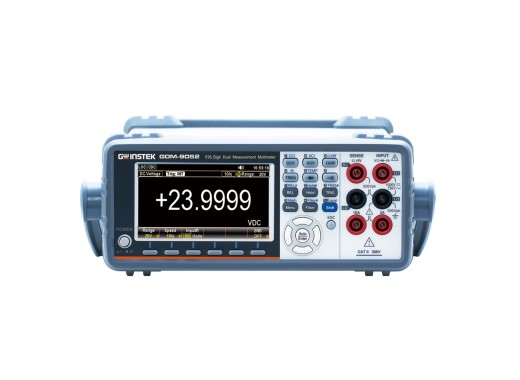

GW Instek GDM-9052 multimeter
Details
The GW Instek GDM-9052 is a high precision 5½ digit bench top multimeter, with an accuracy of 0.012 %. This multimeter provides serious specs and holds itself up compared to the Siglent SDM3055, only losing on reading speed. This multimeter uses AI, which is automatic identification, meaning you never have to manually select the measurement mode or measuring range. The GDM-9052 is equipped with measurement functions such as Max/Min, Hold, relative value, and compare, enhancing its usability in diverse settings. Additionally, A very unique feature of the GW Instek digital multimeters is the ability to perform two different measurement functions simultaneously. The two executed functions are always displayed separately. The GDM-9052 is equipped with Digital I/O, USB and RS-232C interfaces, allowing for easy data transfer and remote control.
Specifications
| Display resolution | 240.000 counts, 5½ digits |
| Max. AC voltage | 750 V |
| Max. DC voltage | 1000 V |
| Max. AC current | 10 A |
| Max. DC current | 10 A |
| Max. resistance | 100 MΩ |
| Max. capacitance | 100.0 μF |
| Frequency | 10 Hz - 1 MHz (Voltage) 20 Hz - 10 kHz (Current) |
| Temperature | -200 - 300 ℃ |
| Other functions | Diode, Recall, Continuity, Max, Min, dBm, dB, REL, Hold, Compare, Store Auto range / Auto identification / Manual Math : MX + B/ % / 1/X |
| Power supply | AC 100 V - 240 V, 50 / 60 Hz, 20 VA max. |
| True-RMS |
Yes
|
| Data logging |
No
|
| Display | 4.3’ , TFT LCD |
| Interfaces | Digital I/O, USB device, RS-232C |
| Dimensions | 268 x 107 x 302 mm |
| Weight | 3.2 kg |
Accessories
The GDM-9052 includes:
- GTL-207A test lead
- Power cord
- Declaration of traceable calibration
Downloads
| GW Instek GDM-9052 Datasheet |  (607.45 KB) | Download |
| GW Instek GDM-9052 Manual | (5.94 MB) | Download |
