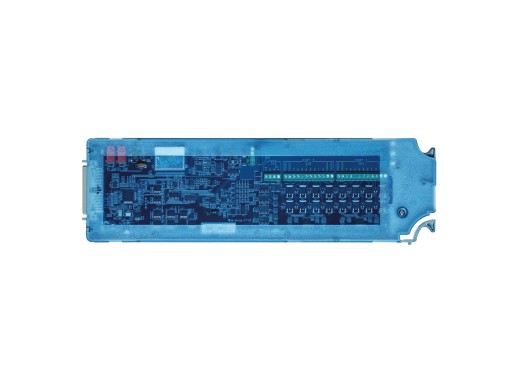

The GW Instek DAQ-907 multifunction module is designed as an expansion for the GW Instek DAQ-9600. The DAQ-907 adds versatile capabilities to your data acquisition system by offering a combination of digital I/O, high-resolution analog outputs, and a totaliser input. With 16 bits of digital input/output, two 18-bit analog output channels, and a 100 kHz totaliser input, this module is ideal for general-purpose control and signal generation.
Specifications
| Digital I/O |
16 bits, open drain, max 42 V |
| Analog outputs |
Two 18-bit outputs, ±12 V, ±24 mA (max 40 mA per frame) |
| Totalizer input |
100 kHz, 42 V max, input threshold selectable |
