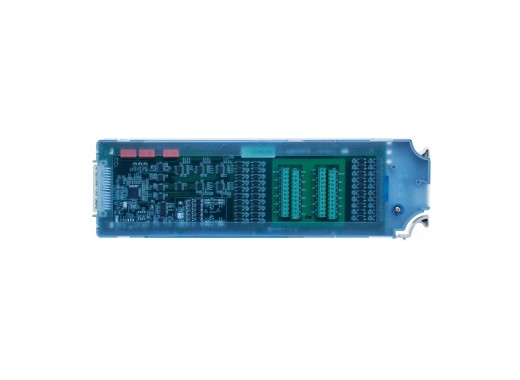

GW Instek DAQ-900 module
Details
The GW Instek DAQ-900 solid state relay module is meant as an expansion for the GW Instek DAQ-9600. The DAQ-900 is a 20 channel universal multiplexer that provides two groups of 10 2-wire channels; these channels are switchable to high and low inputs. An advantage of this module is that it has a built-in cold junction reference, which can reduce errors while measuring thermocouples.
Specifications
| Speed | 450 channels/second |
| Maximum voltage | 120 V |
| Bandwidth | 10 MHz |
| Supported measurements | AC/DC voltage frequency/period 2- and 4-wire resistance thermocouple |
Pros and cons
- Built-in cold junction reference
Downloads
| DAQ-9600 datasheet |  (887.67 KB) | Download |
| DAQ-9600 specifications | (238.11 KB) | Download |
| DAQ-9600 User manual | (6.52 MB) | Download |
| DTC sample | (126.04 KB) | Download |
