Guide IR MobIR ES2+ thermal imaging camera (Android & iOS)
Details

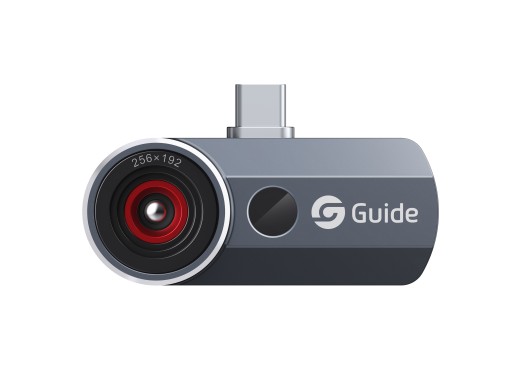

The Guide MobIR ES2+ is a plug-and-play dual-vision thermal camera for smartphones and tablets, turning a phone into a thermal imager for HVAC inspection, electrical fault diagnosis, PCBA inspection and building inspection. It connects through USB-C and works with both Android and iOS, so the same camera can be shared across devices. The ES2+ has no battery of its own as it draws just 620mW from the phone.
The thermal camera has a NETD of ≤15mK, showing far smaller temperature differences than most smartphone thermal cameras. The 256x192 detector can be upscaled in real time to 512x384, giving twice the linear resolution, and the camera is ready to measure about 5 seconds after plugging in. Moreover, the 56°x42° field of view and a 30Hz frame rate suit inspection work on cabinets, boards and installations.
Unlike the ES1 and ES2, the ES2+ has its own 800x600 visible light camera. This adds visible light and MIF fusion image modes alongside infrared and picture-in-picture, so thermal detail can be overlaid on a sharp visual image to pinpoint exactly which component is running hot.
The free FocusIR app for iOS and Android provides spot, line and area analysis, 12 colour palettes plus one custom palette, temperature alarms, and photo and video recording. The measurement range of the ES2+ runs from -20 to 550°C over two auto-switching ranges. The aerospace-grade metal housing is IP54 rated and passes a 2m drop test, while the whole camera only weighs 32g.
For close-up inspection of small components, an optional magnetic 15x macro lens is available. iPhone 14 and earlier models, and iPads with a Lightning port, require the optional USB-C to Lightning adapter.
Model overview
| Model | MobIR ES1 | MobIR ES2 | MobIR ES2+ |
|---|---|---|---|
| IR resolution | 120 x 90 | 256 x 192 | 256 x 192 |
| Super resolution | 480 x 360 (4x) | 512 x 384 (2x) | 512 x 384 (2x) |
| Frame rate | 25 Hz | 30 Hz | 30 Hz |
| FOV | 50° x 38° | 56° x 42° | 56° x 42° |
| Min. focus distance | 0.1 m | 0.3 m | 0.3 m |
| Visible light camera | No |
No |
800 x 600 |
| Image modes | IR, PIP | IR, PIP | IR, VIS, MIF, PIP |
| Macro lens (optional) | 30x | 15x | 15x |
| Price |
Specifications
| Temperature range | -20 to 550 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| Focal length | 3.2 mm |
| NETD | ≤15 mK |
| Focus mode | Focus-free |
| Visible light camera | 800 x 600 |
| Image modes | IR, VIS, MIF, PIP |
| Analysis | Spot, line, area, temperature alarm |
| Colour palettes | 12 plus 1 custom |
| Interface | USB-C male |
| Battery | Battery-free, powered by the phone (620 mW) |
| Dimensions | 58 x 24 x 17.6 mm |
| Weight | 32 g |
Accessories
The MobIR ES2+ comes with:
- USB-C cap
- Carrying bag
Pros and cons
- Low ≤15mK NETD
- 800x600 visible light camera with MIF fusion
- Works with both Android and iOS
Downloads
| Guide MobIR 3.0 datasheet |  (472.68 KB) | Download |
| Guide MobIR series user manual | (473.21 KB) | Download |
