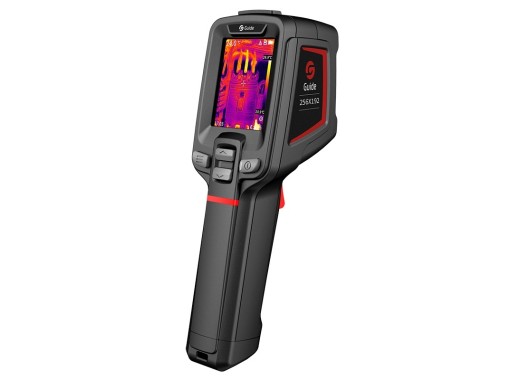

Guide IR E2 thermal imaging camera
Promotion! This product is temporarily reduced in price. Offer valid while stocks last!
Details
Tip:
The Guide IR E2 is the successor of the Guide PC210. Although the outside looks the same, the camera has some considerable upgrades, such as the capability to record video, wifi, real-time control via an app, and firmware updates via wifi. The performance and quality of this thermal camera can easily be compared with well-known brands like Flir. The excellent price/quality ratio stands out especially. Using both the superb IR resolution of 256x192 combined with the information obtained from its visible light camera, this E2 delivers crisp clear thermal images and videos. Besides the excellent sensor, this camera offers other important features: for example 9 seconds boot time, auto hot & cold spot tracking, real-time super-resolution (512x384), alarm function, flashlight, and a laser. Furthermore, it has built-in 16 GB of memory. This camera can be considered to be very sturdy as it has an IP54 rating and has been drop-tested up to 2m. It can be mounted on a tripod, because it features a 1/4 inch mount connector on the handle bottom. Using PotPlayer it is possible to view live IR video over USB-C. It is also possible to view the IR video live over wifi with the Thermography app.
A camera bag to safely store the E2 camera can be found on the following page.
For tutorials on the Thermotools software, the Guide Youtube account, seen here, contains many videos on how to use the software.
The Guide E2 can be upgraded. While new firmware may not always appear automatically via OTA, you can request an update by emailing liqc@guideir.com with your device serial number and a request for an OTA update. Once enabled by Guide, the update will appear in the OTA menu as usual. Updating generally makes the E2 feel faster and more responsive.
Model overview
| Model | E2 | E2+ | E3 | E4 |
|---|---|---|---|---|
| Temperature range | -20 to 550 °C | -20 to 550 °C | -20 to 550 °C | -20 to 650 °C |
| IR resolution | 256 x 192 (49152 pixels) | 256 x 192 (49152 pixels) | 256 x 192 (49152 pixels) | 384 x 288 (110592 pixels) |
| NETD | 45 mK | 45 mK | 30 mK | 25 mK |
| FOV | 56° x 48° | 25° x 19° | 56° x 42° | 37° x 28° |
| Auto focus | No | Yes | No | No |
| Display | 2.4" | 2.4" | 3.5" | 3.5" |
| Battery | Up to 16 hours | Up to 16 hours | Up to 12 hours | Up to 10 hours |
| Price |
Specifications
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| Focal distance | Min. 10 cm |
| Frame rate | 25 Hz |
| Response time | 40 ms |
| Spot measurement | Center, 3 areas (max/min), auto spot tracking, alarm |
| Detector type | VOX Focal plane array (FPA) |
| Charge time | Quickcharge, 0-90% in 2.5 hours |
| Dimensions | 194 × 62 × 76 mm |
| Net weight | 0.375 kg |
Optionally, you can purchase the which makes it possible to focus on small parts, like electronic boards.
Accessories
The E2 includes
- Charger
- USB-A to USB-C cable
- Wrist band
- Windows software (ThermoTools 4.1.46 (272 MB))
Pros and cons
- Video streaming mode
- Wifi
- Cannot be connected to Mac devices
Downloads
| ThermoTools user manual |  (4.5 MB) | Download |
| Guide E IR series - datasheet | (540.94 KB) | Download |
| Guide IR E2(+)S user manual | (1.44 MB) | Download |
| Guide E2(+) NL handleiding | (700.28 KB) | Download |
