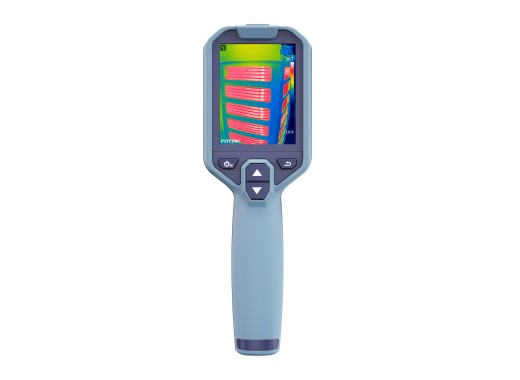

Fotric TF3 thermal imaging camera
Details
The Fotric TF3 is a handheld thermal imaging camera designed for electrical inspection, HVAC maintenance, building diagnostics and equipment troubleshooting. It features a 320x240 infrared resolution, giving users a more detailed thermal image than many entry-level cameras. Furthermore, the TF3 combines a <30mK sensitivity with a 30Hz frame rate, making it easier to spot small temperature differences and follow live changes.
The camera measures from -20 to 450°C with an accuracy of ±2°C or 2%. It also supports focus-free operation and has up to 7 hours of battery life, making it well-suited for large-area surveys. Finally, the TF3 features a 3.2-inch IPS display, multiple viewing modes, high/low temperature tracking and colour alarms, making it useful for finding hotspots.
Specifications
| Temperature range | -20 to 450 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| Focal distance | Min. 30 cm |
| Focal length | 4 mm |
| NETD | <30mK |
| IR resolution | 320 x 240 (76800 pixels) |
| IR thermal resolution | 0.03°C |
| Frame rate | 30 Hz |
| FOV | 50° x 38° |
| Display | 3.2" (640 × 480 pixels) |
| Colour palettes | Rain, iron, grey, rainbow |
| Storage | 32GB TF card |
| Battery | Up to 7 hours |
| Dimensions | 222 × 74 × 77 mm |
| Weight | 0.43 kg |
Accessories
The TF3 comes by default with:
- 1x Type-C to USB cable
- 1x 32GB TF card
- 1x Colour box
- 1x Portable soft bag
Pros and cons
- Good IR resolution
- Large screen
- High frame rate
- No super resolution mode
- No WiFi
Downloads
| Fotric TF3 datasheet |  (96.47 KB) | Download |
