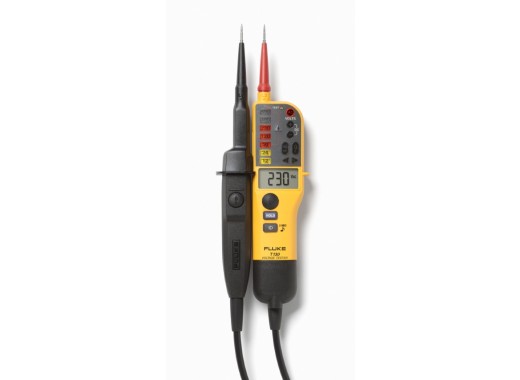

Fluke T130 voltagetester
Details
The Fluke T130 is a two-pole voltage and continuity tester which can measure up to 690V. This tester features large, easy-to-use buttons, an electric torch, and a bright backlit LED indicator and display. This makes it suited for nearly any work situation. The T130 is also equipped with tactical and audible feedback to indicate the presence of voltage. Especially the tactical feedback is something that stands out in comparison to other testers.
The T130 is able to measure continuity, voltage, and phase rotation. Even when the device's batteries are empty, it will still indicate whether there is a voltage present to prevent dangerous situations. Next to this, the voltage tester features some advanced functionality, such as data hold and RCD tests.
Compare models
The main difference between the models is their capability to make resistance measurements.| Model | T130 | T150 |
|---|---|---|
| Resistance measurement | - | 1999 Ω |
| Price |
Specifications
| Voltage | 6 V - 690 V |
| Continuity | 0 - 400 kΩ |
| Supported frequency | 0/40 Hz - 400 Hz |
| Phase rotation | 100 V - 690 V |
| Response time | < 0,5 s |
| Safety Category | CAT III 690 V & CAT IV 600 V |
| Power source | 2 x AAA |
| Dimensions | 26 x 7 x 3,8 cm |
| Weight | 280 g |
Accessories
The T130 includes:
- Batteries
- Test lead caps
Pros and cons
- Tactical voltage feedback
- Electrical torch in tip
- Data hold and RCD tests
Downloads
| Fluke T130 Datasheet |  (282.55 KB) | Download |
