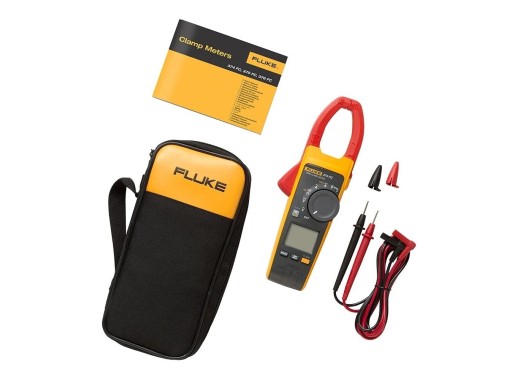

Fluke 374FC True-RMS clamp meter
Details
The Fluke 374FC True-RMS clamp meter measures AC/DC current. The iFlex flexible current probe provides easier access to large conductors in narrow spaces. The 374FC is a clamp meter from the Fluke wireless line. This means that measurements can be monitored from a safe distance thanks to Bluetooth connectivity.
Model overview
| Model | 374FC | 376FC |
|---|---|---|
| AC current range | 600 A | 1000 A |
| DC current range | 600 A | 1000 A |
| Frequency | No |
5 - 500 Hz |
| Data logging | No |
Yes |
| VFD low pass filter | No |
Yes |
| Price |
Specifications
| Display resolution | 6000 counts |
| AC voltage range | Up to 1000 V |
| DC voltage range | Up to 1000 V |
| Resistance range | Up to 6000 Ω |
| Capacitance range | 1 - 1000 μF |
| Jaw opening | 34 mm |
| Power supply | AA battery x 2 |
| True-RMS | Yes |
| Dimensions | 249 x 85 x 45 mm |
| Weight | 395 g |
Downloads
| Fluke 376FC datasheet |  (998.6 KB) | Download |
