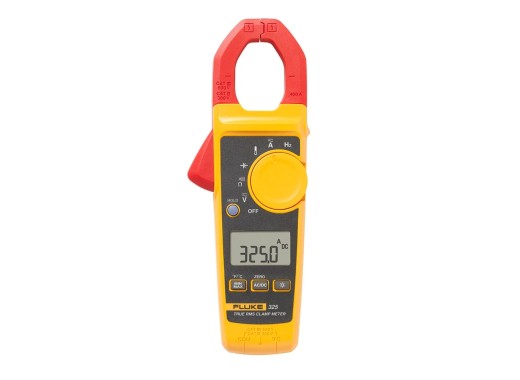

Fluke 325 true-RMS current clamp
Details
The Fluke 325 True-RMS clamp meter is a compact and lightweight handheld current clamp, being able to measure in the 40A and 400A range for both AC and DC. Featuring a 30 mm wire measurement opening, a 3 ¾ digit back-lit display, capacitance, temperature and frequency measurement, a Min/Max function capable of recording important values, this advanced model is quite an improvement on the Fluke 324.
Models
| Model | Fluke 323 | Fluke 324 | Fluke 325 |
|---|---|---|---|
| Max. AC current | 40 A | 400 A | 400 A |
| Max. DC current | - | - | 400 A |
| Max. resistance | 4 kΩ | 4 kΩ | 40 kΩ |
| Max. capacitance | - | 1000 µF | 1000 µF |
| Temperature | - | -10 ℃ - 400 ℃ | -10 ℃ - 400 ℃ |
| Backlight | No | Yes | Yes |
| Frequency | - | - | 5 Hz - 500 Hz |
| Min/Max | No | No | Yes |
| Price |
Specifications
| Display resolution | 4000 counts, 3 ¾ digits |
| Max. AC voltage | 600 V |
| Max. DC voltage | 600 V |
| Power supply | 2x AAA battery |
| True-RMS | Yes |
| Data logging | Yes |
| Display | LCD, back-lit |
| Dimensions | 207 x 75 x 34 mm |
| Weight | 0.283 kg |
Accessories
The Fluke 325 clamp meter comes with:- TL75 test leads
- Type K thermocouple
- 2x AAA batteries (pre-installed)
- Soft carrying case
Pros and cons
- Frequency measurement
- DC current measurement
- Min/Max function
Downloads
| Fluke 323/324/325 user manual |  (1.06 MB) | Download |
| Fluke 325 datasheet | (282.23 KB) | Download |
