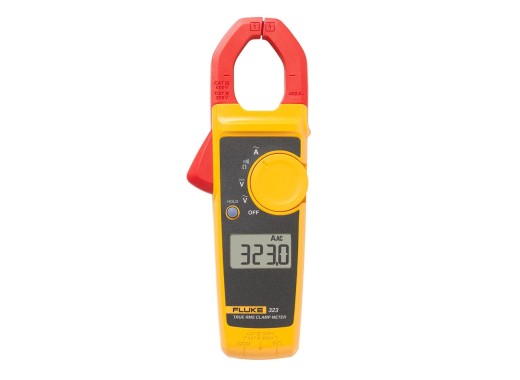

Fluke 323 current clamp
Details
The Fluke 323 True-RMS clamp meter is a compact handheld current clamp, being able to measure in the 40A range. Featuring a 30 mm wire measurement opening, a 3 ¾ digit display with a HOLD function, this model provides the most basic multimeter functions needed.
Models
| Model | Fluke 323 | Fluke 324 | Fluke 325 |
|---|---|---|---|
| Max. AC current | 40 A | 400 A | 400 A |
| Max. DC current | - | - | 400 A |
| Max. resistance | 4 kΩ | 4 kΩ | 40 kΩ |
| Max. capacitance | - | 1000 µF | 1000 µF |
| Temperature | - | -10 ℃ - 400 ℃ | -10 ℃ - 400 ℃ |
| Backlight | No | Yes | Yes |
| Frequency | - | - | 5 Hz - 500 Hz |
| Min/Max | No | No | Yes |
| Price |
Specifications
| Display resolution | 4000 counts, 3 ¾ digits |
| Max. AC voltage | 600 V |
| Max. DC voltage | 600 V |
| Power supply | 2x AAA battery |
| True-RMS | Yes |
| Data logging | Yes |
| Display | LCD |
| Dimensions | 207 x 75 x 34 mm |
| Weight | 0.265 kg |
Accessories
The Fluke 323 clamp meter comes with:- TL75 test leads
- Soft carrying case
Pros and cons
- True-RMS
- HOLD function for display
- No frequency, capacitance or temperature measurement.
- No backlight
Downloads
| Fluke 323 datasheet |
 (256.9 KB) |
Download |
| Fluke 323/324/325 user manual |
(1.06 MB) |
Download |
