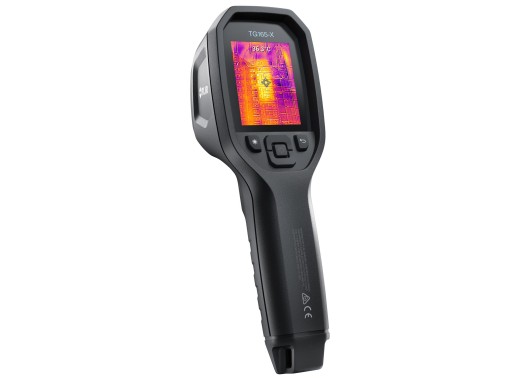

The Flir TG165-X thermal imaging camera offers good and reliable results for an affordable price. Equipped with the FLIR Lepton thermal camera chip, it is possible to accurately measure from relatively large distances. With the spot thermometer, the temperature values can be read quickly. The TG165-X makes heat problems visual.
Compared to the older TG165 model, the TG165-X is a leap forward. It stands out with its very short startup time, which only takes just a few seconds whereas other infrared cameras take a longer time to process. Furthermore, it is a radiometric one, thus storing the temperature data in the thermal image for each pixel, allowing the color palette and scale to be changed at a different time. This way you can take your measurements and process them in the Flir Tools desktop application. The battery now lasts longer too, good for up to 5 hours a charge.
It is possible to store up to 4 GB of captured images into its internal memory, which can be transferred out with USB-C. Easy to use and very solid, the TG165-X is built to survive a fall of 2 meters. With the trigger at the front of the handle, the 2 lasers can be activated, making it easy to see what is being aimed at. In addition, it is possible to mount the TG165-X on a tripod by the built-in mount screw.
IR thermometer
| Range | -25 to 300 °C
| | NETD | <70 mK
| | Accuracy | ± 3°C @ -25 to 0°C | ± 2.5°C @ 0 to 50°C ± 1.5°C @ 50 to 100°C ± 2.5°C @ 100 to 300°C | Resolution | 0.1 °C
| | Response time | 150 ms
| Heat camera
| | Cameratype | FLIR Lepton Mircobolometer
| | Image resolution | 4800 px (80 x 60 px)
| | Update rate | 8.7 Hz
| Digital camera
| | Resolution | 2 MP (1600 x 1200 px)
| | Focus | Fixed
| General
| | Display | 2.4" LCD (320 x 240 px)
| | Battery | max 5 hours of scanning (LCM medium brightness) | max 4.5 hours with laser on (LCM medium brightness) | Dimensions | 210 x 64 x 81 mm
| | Weight | 394 g
| |
For more information you can consult the datasheet below.
The TG165-X comes with the following accessories
Flir TG165-X datasheet |
(1.93 MB) | Download |
Flir TG165-X user manual |
(7.99 MB) | Download |
