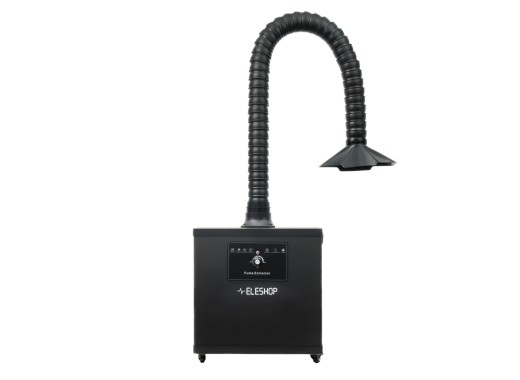

FE1B soldering fume extractor
Details
The FE1B is a premium soldering fume extractor, suitable for all applications where harmful fumes are produced, such as soldering, spray painting and laser carving. Furthermore, this extractor combines a triple filter design with powerful suction, reaching an absorption and filtration ratio of up to 99.97% thanks to the included HEPA filter. The purified air can be discharged directly indoors.
The flow rate can be adjusted to the desired value with the knob, so the extraction matches the task at hand.
This extractor is the black version of the FE1W, identical apart from the colour.
Although this extractor is durable thanks to its metal body, it is not ESD-safe. For an ESD-safe fume extractor, see the FE1B-ESD.
Model overview
| Model | FE1W | FE1B | FE1B-ESD | FE1BD-ESD |
|---|---|---|---|---|
| Colour | White | Black | Black | Black |
| ESD-safe | No |
No |
Yes |
Yes |
| Inlets | 1 | 1 | 1 | 2 |
| Price |
Specifications
| Power | 210 W |
| Airflow (measured by Eleshop) | 133 - 290 m3/h |
| Noise level (measured by Eleshop) | 50 - 62 dB |
| Filter | Pre- + HEPA (H13) + main filter |
| Filter efficiency | 99.97% of particles >0.3µm |
| Amount of carbon | 1.5 kg |
| Tube length | 1.4 m |
| Dimensions | 425 x 250 x 410 mm |
| Weight | 14 kg |
Accessories
The FE1B comes with:
- 1x Air duct
- 1x Main filter
- 1x HEPA filter
- 4x Pre-filter
- 1x Power cable
Pros and cons
- Low noise
- Up to 99.97% filtration
- Not ESD-safe
Downloads
