ELE-DM750 digital microscope

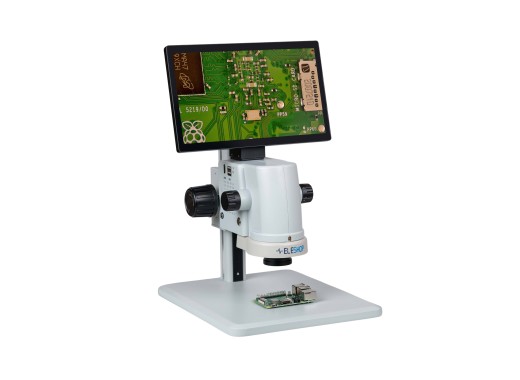

The ELE-DM750 microscope is a high-quality digital microscope. Unlike typical hobbyist microscopes, which are more basic and affordable, the ELE-DM750 is an industrial-grade instrument designed for professional use. The microscope is designed to be robust and provide superior stability, ensuring precise and consistent observations. The microscope comes with a 0.75x barlow lens, increasing the working distance.

This microscope features a high-definition 11.6" display and has a resolution of 1920x1080 pixels. The microscope camera has a 1/2.8" Sony CMOS imaging sensor, enabling 5MP photos and video recordings in 1080p at 45fps. The microscope camera also contains an embedded 56-LED ring, ensuring good lighting in any environment. The microscope also allows viewing the output live on an external HDMI display and features a double USB 2.0 port. Photos and recordings can also be stored using external USB storage.

There is also an optional 3D attachment available, enabling a 360-degree side view of the object under observation. This attachment can be secured to the microscope and rotated to find the perfect angle, as seen in the picture. Be aware: the 3D attachment cannot be used together with the barlow lens.

Overall, this digital microscope is user-friendly, built to last, and designed for maximum efficiency with minimal distractions. The ELE-DM750 microscope is crafted for professional applications where flexibility and customizability are essential, offering high-end functions such as a large magnification range and a premium build that meets the demands of professional observations.

Specifications

Accessories

The ELE-DM750 digital microscope comes with:

• 1x ELE-DM750 digital microscope
• 1x 0.75x barlow lens
• 1x Wireless mouse
• 1x Screwdriver for assembly
• 1x Dust cover
• 1x Power supply

Downloads

Manual ELE-DM750

(1.13 MB)

Download
