EFM51 walking test kit
Details

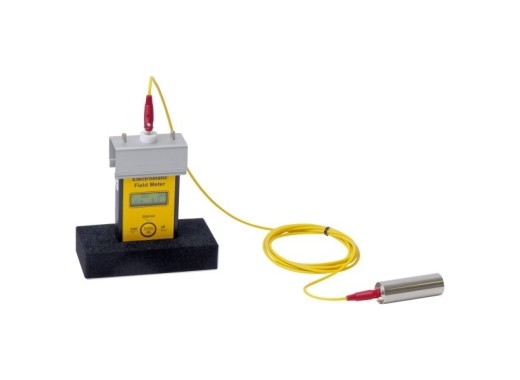

The EFM51 walking test kit includes a pocket-sized handheld electrostatic field meter with a base and hand electrode. The handheld electrode detects and measures the electrostatic discharge of a person walking across an ESD floor to verify that current ESD protection is adequate.
Like other EFM51 models, it also detects and measures ES fields, potentials and the discharge time of objects in conjunction with the base electrode. In addition, the product can measure static voltages up to ±800kV.
Features automatic field to voltage conversion (V/m to V) depending on the selected distance.
Model Overview
EFM51 series models differ in function.
| Model | EFM51 electrostatic field meter | EFM51 walking test kit | EFM51 verification kit |
|---|---|---|---|
| Measures ES fields, potentials and discharge times | Yes |
Yes |
Yes |
| Measure voltage generated on the body while walking | No |
Yes |
Yes |
| Measure offset voltages of ionizer | No |
No |
Yes |
| Price |
Specifications
| Max. voltage measurement | ± 160 kV (remote mode) ± 800 kV/m (field strength mode) |
| Display | 12-digit alphanumeric LCD display |
| Power supply | 9 V battery |
| Battery life | Up to 10 hours |
| Dimensions | 356 x 1330 x 102 mm |
| Weight | 130 g (without battery) |
Accessories
The EFM51 walking test kit includes:
- 9V battery
- Storage case
- Foam base plate
- Test lead
- Base electrode
- Hand electrode
Downloads
| EFM51 walking test kit datasheet |  (105.14 KB) | Download |
