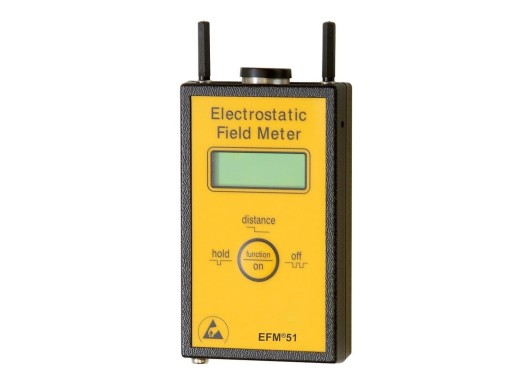

EFM51 electrostatic field meter
Details
The EFM51 is a handheld pocket-sized electrostatic field meter with a rotating chopper. It detects and measures ES fields, potentials and the discharge time of objects. Capable of measuring static voltages up to ±800kV, this product enables you to check whether or not current ESD protection is sufficient.
The chopper is a multibladed propeller rotating at a high rate over the measurement aperture, causing the DC electric field to be converted to an AC-type signal. This results in a higher sensitivity measurement than with a tuning-fork chopper.
Features an automatic field to voltage conversion (V/m to V), according to the selected distance.
Model overview
The EFM51 series models differ in their functions.
| Model | EFM51 electrostatic field meter | EFM51 walking test kit | EFM51 verification kit |
|---|---|---|---|
| Measures ES fields, potentials and discharge times | Yes |
Yes |
Yes |
| Measures voltage generated on the body while walking | No |
Yes |
Yes |
| Measures ionizer offset voltages | No |
No |
Yes |
| Price |
Specifications
| Max. voltage measurement | ± 160 kV (distance mode) ± 800 kV/m (field strength mode) |
| Display | 12 digits alphanumeric LCD display |
| Power supply | 9 V battery |
| Battery | Up to 10 hours |
| Dimensions | 356 x 1330 x 102 mm |
| Weight | 130 g (without battery) |
Accessories
The EFM51 electrostatic field meter is delivered including:
- 9V battery
- Storage case
- Ground cable
Pros and cons
- Rotating chopper for high sensitivity measurements
