Hirschmann Buela 20 K
Details
Be aware: this product is sold individually.

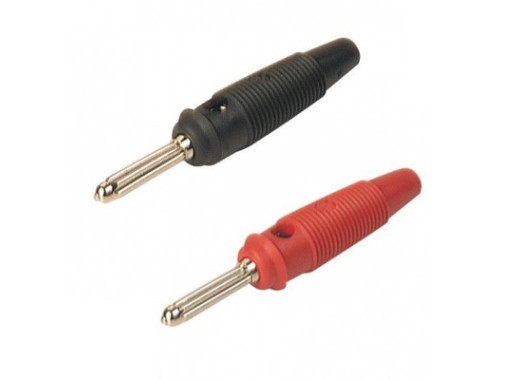

The Buela 20 K banana plugs from Hirschmann are insulated banana plugs with screw connection. The thickness of the plug is 4 mm so that it can be connected to most standard measuring objects. Because the end of the banana plug is flexible, cable breakage is less likely to occur. Furthermore, the plug can be loaded up to 16 Amps.
On top of this page you can chose between the colours red or black.
Specifications
| Diameter tip | 4 mm |
| Voltage | 60 V (DC) |
| Current | 16 A |
| Contact resistance | 3 mΩ |
| Material casing | Brass (nickel-plated) |
Downloads
| Hirschmann Buela 20K datasheet |  (319.7 KB) | Download |
