Hirschmann VON 30
Details
Be aware: this product is sold individually.

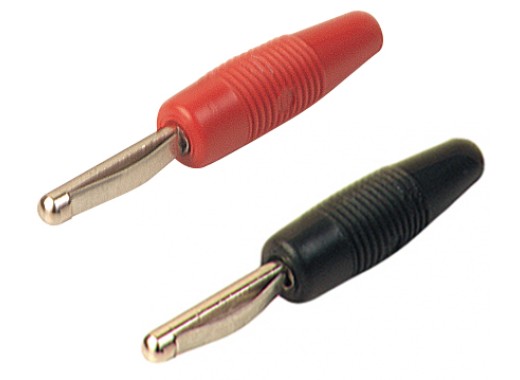

The VON 30 banana plug from Hirschmann are insulated plugs with solder connection. This plug has a thickness of 4 mm, allowing it to be connected to most standard measuring objects such as terminals. The flexible insulating end reduces the risk of cable breakage. Because of the powerful spring-loaded tip, the contact resistance with only 3 mΩ is very small. The point is made of nickel, which causes this low resistance. The solder joint is suitable for wires with a cross section up to 3.8 mm2.
The plugs are tested to withstand voltages up to 60 V DC and currents up to 30 A. They are available in black and red, you can select this on top.
Specifications
| Contact resistance | 3 mΩ |
| Voltage | 30 V AC 60 V DC |
| Ampere | 30 A |
| Maximum cable cross-section | 2.5 mm2 |
| Connector pin | 4 mm |
| Material casing | PVC - P |
Downloads
(75 KB)
