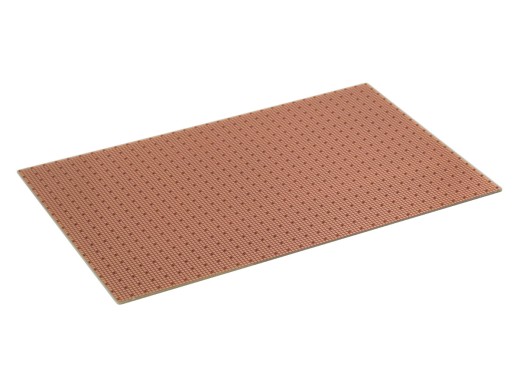

The BusBoard SP3T-50x50-G SMT PCB is a 160 x 100 mm prototyping circuit board with a grid of pads for 0402, 0603, 0805, 1206, SOT23, and other SMT parts.
Moreover, the board has a grid of 1.067 mm square pads on 1.27 mm centers which allows SMT components of various sizes and pitches to be mounted to the circuit board.
Also, the SP3T-50x50-G includes 0.79 mm holes for connections to the ground plane or pads on the opposite side.
Specifications
| Square pads size | 1.067 mm |
| Unplated hole size | 0.79 mm |
| Dimensions | 160 x 100 x 0.8 mm |
