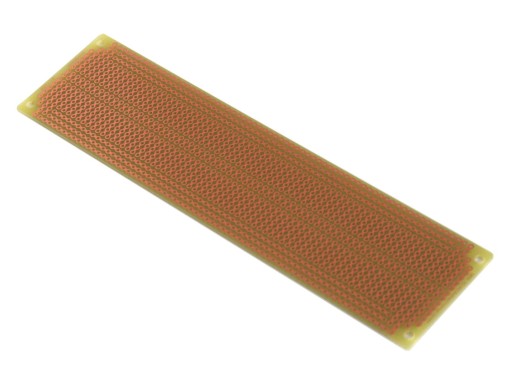

The BusBoard SB830 solderable breadboard is a permanent circuit board which has the same pattern as a standard 830 connection point BB830 plug-in breadboard with power rails.
The SB830 Solderable PCB makes it easy to transfer your circuit to the permanent board without recutting wires or changing the layout. The busboard has 4 mounting holes which make it easy to mount it to your project.
Specifications
| Tie-points |
1258 |
| Tie-points size |
1.07 mm diameter holes |
| Mounting holes diameter |
4 x 3.175 mm diameter |
| Dimensions |
184.2 x 47.0 x 1.6 mm |
Downloads
(865.75 KB)
