Convenient quality breadboard for fast prototyping. Solid connection and ease of plugging MCUs with many legs.
Power lines, however, are divided into sections, for some applications it may not be the best option.

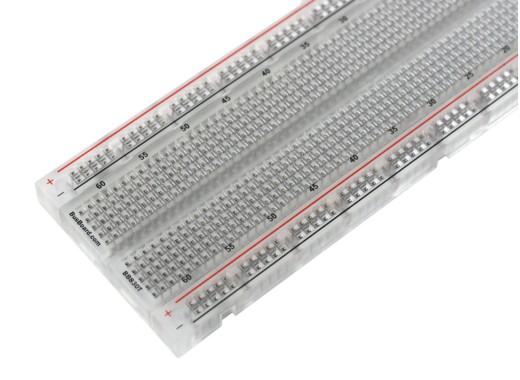

BusBoard BB830T transparant breadboard
Details
This transparant solderless breadboard is made of premium quality materials and great for building and testing new circuits. The internal contacts are phosphor bronze with a nickel-plated finish. The back of the board is provided with a peelable adhesive tape so that it can be mounted to a specific surface. The breadboard is rated at 36V / 2A.
Specifications
| Tie-points | 830 (630 in IC-circuit area; 2 x 100 distributions strips providing 4 power rails) |
| Insertion wire size | 21 to 26 AWG (0.4 to 0.7 mm diameter) |
| Dimensions | 165.1 x 54.6 x 8.5 mm |
Pros and cons
- High quality material
- Adhesive tape on the back
Downloads
| BusBoard BB830 breadboard datasheet |
 (807.8 KB) |
Download |
| BusBoard BB830 breadboard authenticity sheet |
(464.82 KB) |
Download |
