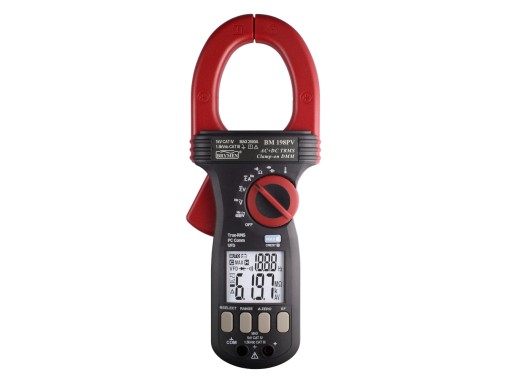

Brymen BM198PV current clamp
Details
The Brymen BM198PV digital clamp meter is designed for PV power generation applications, where meters need to measure high DC voltages and deal with large inrush currents. The BM198PV has a CAT IV 1000V and CAT III 1500VDC rating and is also capable of measuring up to 2000A. The meter is equipped with a 55mm jaw to measure large conductors. It also has features such as high-voltage ACV measurements, EF-detection and the ability to measure the fundamental frequency and voltage of VFDs.
The CREST function of Brymen has also been optimised to perform short peak RMS measurements up to a time span of 5ms. In addition, the BM198PV can perform all standard measurements such as AC & DC True-RMS voltage and current, resistance (up to 6 levels), capacity, frequency and temperature. A BRUA-19X USB kit can also be ordered optionally with the BM198PV to connect the meter to a PC for storing measurement results.
Model overview
| Models | BM197 | BM198PV |
|---|---|---|
| Max. DC Voltage | 1000 V | 1500 V |
| Price |
Specifications
| Display resolution | 3 ⅚-digits, 6000 counts 3 ½-digits, 2000 counts for frequency |
| Measurement frequency | 5 measurements per second |
| Max. AC voltage | 1000 V |
| Max. AC current | 2000 A |
| Max. DC current | 2000 A |
| Max. resistance | 40 MΩ |
| Max. capacitance | 2000 µF |
| Frequency | 10 Hz - 1999 Hz |
| Temperature | -50 - 1000 °C |
| Other functions | Diode test, continuity test, VFD voltage and frequency, 5 ms Crest-MAX, Data Hold, Relative Zero, non-contact EF detection, probe-contact EF detection, and backlit LCD |
| Power supply | 2 x 1.5 V AA batteries |
| True-RMS | Yes |
| Data logging | Yes |
| Connectivity | USB (optional USB kit) |
| Jaw opening | 55 mm |
| Dimensions | 264 x 97 x 43 mm |
| Weight | 608 g |
Accessories
The BM198PV comes with:
- BKP60 type-K thermocouple
- Gold-plated test leads (pair)
- Soft carrying pouch
Pros and cons
- Made for PV power generation
- CAT IV 1000V rating
- CAT III 1500Vdc rating
- AC + DC True RMS
Downloads
| BM198PV datasheet |  (2.6 MB) | Download |
| BM190 series user manual | (3.78 MB) | Download |
