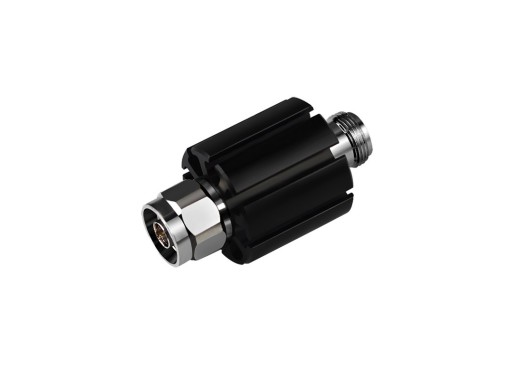

Attenuator N-male to N-female with heat sink 20 dB 15W
Details
The 20 dB attenuator with heat sink is equipped with N-male to N-female connectors and works in both directions. It is used as an accessory for spectrum analysers.
Specifications
| Attenuation | 20 dB |
| Frequency range | 3 GHz |
| VSWR | <1.2 |
| Power | 15 W |
| Impedance | 50 Ω |
| Connectors | Input: N-male Output: N-female |
| Dimensions | 65 x 35 mm |
