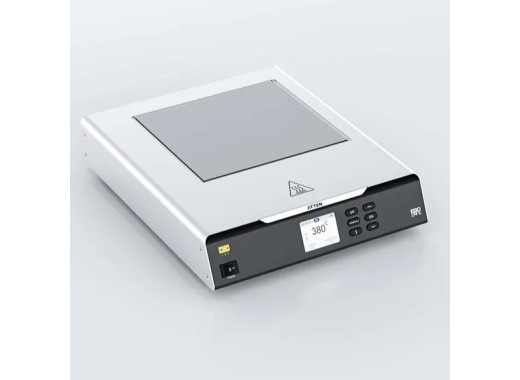

Atten ST-7800 hotplate
Details
The Atten ST-7800 is a large ESD-safe hot plate, but it can function as a basic pre-heater. This device heats up extfast due to the 800W and the aluminium plate with a very high efficiency. The heating area has a size of 20x18cm, which surely is enough for most preheating jobs, and can reach temperatures up to 350°C. An internal closed-loop temperature sensor makes sure that the temperature remains constant and is accurate. With an external K-type thermocouple you can easily measure the temperature of the PCB. Moreover, the hotplate has an OLED display, showing operating temperatures, and a quick selection of set presents.
The hotplate is ideal for reworking PCBs and one side soldering jobs. Finally, the ST-7800 has several connecting capabilities, it can be connected to other devices via RS485 for example. Overall the Atten ST-7800 is a great pick for rework of most PCBs.
Model overview
| Model | ST-7500 | ST-7800 |
|---|---|---|
| Power | 400 W | 800 W |
| Temperature range | 50 °C - 500 °C | 50 °C - 350 °C |
| Heating area | 12 x 12 cm | 20 x 18 cm |
| Heating material | Infraredceramic | Aluminium plate |
Specifications
| Power | 800W |
| Temperature range heater | 50 °C - 350 °C |
| Temperature range thermocouple | 50 °C - 650 °C |
| Temperature stability | +/- 1 °C |
| ESD safe |
Yes
|
| Dimensions | 355 x 293 x 73 mm |
| Weight | 5.1 kg |
Accessories
The Atten ST-7800 comes with:
- Power cord
- K-type thermocouple
Downloads
| ST-7500/7800 manual |  (1.13 MB) | Download |
| Atten Tool |  (2.51 MB) | Download |
