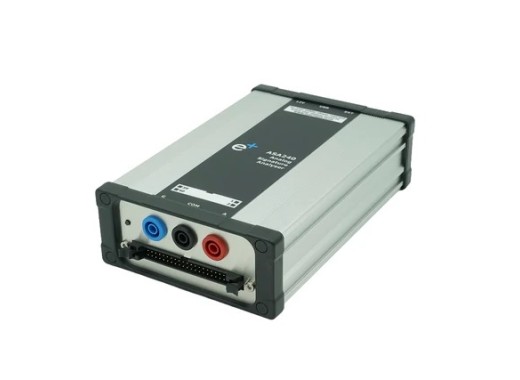

ASA240 analog signature analyser
Details
The ASA240 is a powerful analog signature analyser for in-circuit testing of electronic components and PCBAs. Power-off testing with the ASA240 analog signature analyser is a simple way to diagnose faulty components on a PCBA. When connected to a PC via USB, you can quickly analyse components in a circuit and look for tell-tale faulty signatures. The ASA240 also features a built-in switching multiplexer (40x2), to facilitate the testing of multiple electronic components and PCBAs
In ‘advanced’ mode, you can efficiently capture signatures of an entire PCBA (‘golden board’) and compare with a suspect PCBA to find areas/components that contain faults. Golden PCBA signatures can be stored for later use (as can suspect PCBA signatures).
Specifications
| Output voltage | 200 mVpk to 10 Vpk (10 settings: 0.2, 0.4, 0.6, 0.8, 1, 2, 3, 4, 5, 10 Vpk) |
| Output frequency | 10 Hz to 1 KHz (7 settings: 10, 20, 50, 100, 200, 500 and 1KHz) |
| Output resistance | 50 Ω to 10 KΩ (8 settings: 50, 100, 200, 500, 1 K, 2 K, 5 K, 10 KΩ) |
| Connectivity | USB (Host/Device), 4mm shrouded jack |
| Dimensions | 112 x 50 x 175 mm |
| Weight | 600 g |
Accessories
The ASA240 analog signature analyser comes with:
- 1 x USB cable
Pros and cons
- 40 x 2 switching matrix
Downloads
| ASA240 Manual |  (36.67 MB) | Download |
