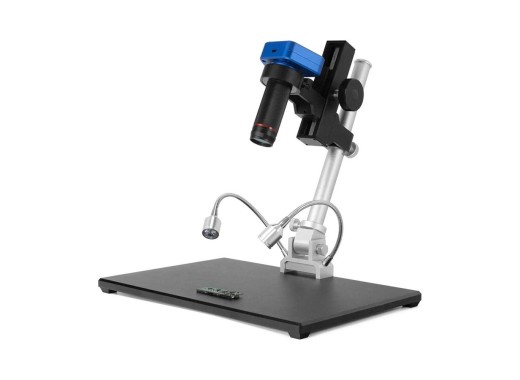

Andonstar AD1605 microscope
Details
The Andonstar AD1605 digital microscope is suitable for various small applications. It features a high-quality 150MP, 4K sensor with a frame rate of 30 fps, making the image clear and smooth. Furthermore, the microscope has a 60-PFS 1080p mode, sacrificing resolution over framerate. The two built-in LED spotlights provide an even brighter and clearer image, ensuring the subject is well-lit from each direction. Even though the AD1605 microscope lacks an integrated display, it can still provide real-time viewing when connected to an external screen via an HDMI cable. The microscope contains a UV filter. This filter not only protects the lens but also reduces reflections and stray lights. Finally, The microscope can be controlled by the buttons on top, but it also has an IR remote control. This makes it possible to perform simple operations without touching the microscope, such as taking pictures and zooming in or out. This ensures a high accuracy of the microscope since you do not need to touch your setup.
Specifications
| Microscope type | Digital image/video |
| Max. video resolution | 4K |
| Max. photo resolution | 4032 x 3024 P (JPG) |
| Frame rate | 60 fps |
| Focus range | Min. 5 cm, Max. 29 cm |
| Working distance | 29 cm |
| Sensor | 140 MP |
| Interfaces | HDMI |
| Display | No |
| Storage | SD-card up to 32 GB |
| Light source | Yes, 2 LEDs |
| Dimensions | 375 x 250 x 470 mm |
| Weight | 5.5 kg |
Accessories
The AD1605 comes by default with:
- IR remote
- HDMI cable
- UV filter
- Power adapter
Pros and cons
- High-resolution
- Remote controlled
- No direct display
Downloads
| AD1605 user manual |  (1.39 MB) | Download |
