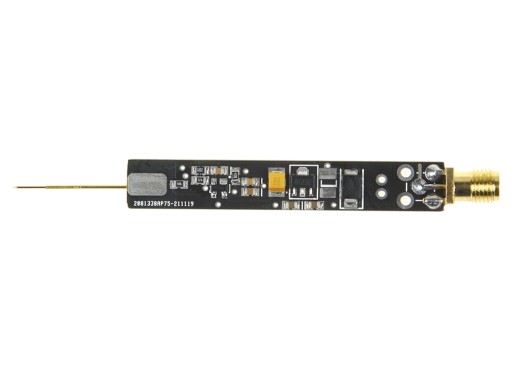

Active RF probe including RF cable
Details
Measurements of RF circuits with an ordinary probe are not ideal because these probes can influence the behaviour of the circuit. This problem
does not occur with this probe because it has a high impedance and low capacitance. The probe has a large bandwidth of
0.1-1500 MHz which makes it suitable for a wide range of measurement purposes.

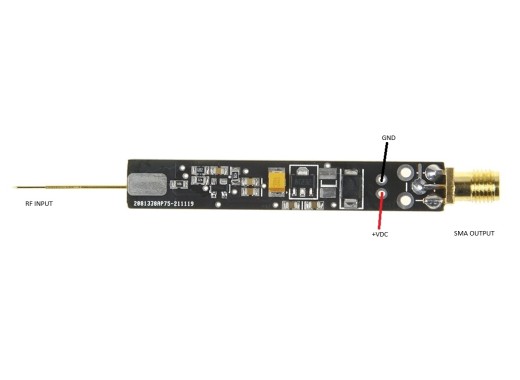

The probe can be used by connecting it, with the included SMA-SMA cable, to an oscilloscope and feeding it with
an external power supply. It is also important that the "ground" connection on the probe is close to the point on the circuit to be measured.
Specifications
| Bandwidth | 0.1 - 1500 MHz |
| Input impedance | 10 Mohm |
| Input capacitance | 0.1 pF |
| Supply voltage | 5 - 24 VDC |
Accessories
This active probe is supplied with:- 30cm SMA-SMA cable
Latest customer reviews
Read all reviews (1)
Review by Fabio
Posted on 09/01/2025
Excellent probe, tested with NanoVna and TinySa, the results were comforting. Linear bandwidth in +/- 2dB up to 1GHz S21 (I couldn't go beyond that due to the limitations of my instruments). Useful tool when you want to measure a signal with high output impedance. I recommend it.
