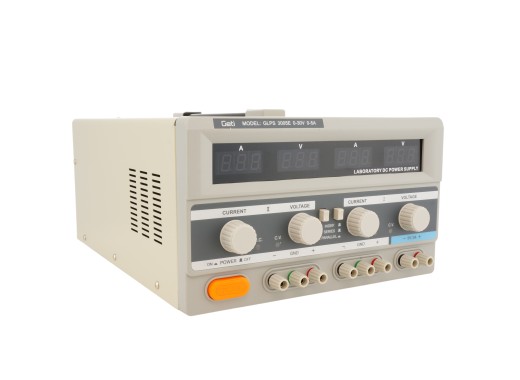

Double 0-30V, 0-5A Power supply
Details
This power supply is capable of supplying up to 300 W at 0 - 60 V or 0 - 10 A. The power supply has 2 individual channels that can supply up to 30 V or 10 A. Apart from that the supply has a fixed 5 V channel that can supply up to 3 A. With less than 1 mV ripple the supply is very precise.
The supply has LED segment displays that offer easily readable data about the current and voltage values. With the default 4 mm pin sizes this supply can be used with most wires.
Specifications
| Output voltage | 2 x 0 - 30 V & 1 x 5 V |
| Output current | 2 x 0 - 5 A & 1 x 3 A |
| Input voltage | 220 - 240 V / 50 - 60 Hz |
| Ripple | < 1 mV rms |
| Weight | 10 Kg |
| Dimensions | 262x163x360mm |
| Short circuit protection | ja |
