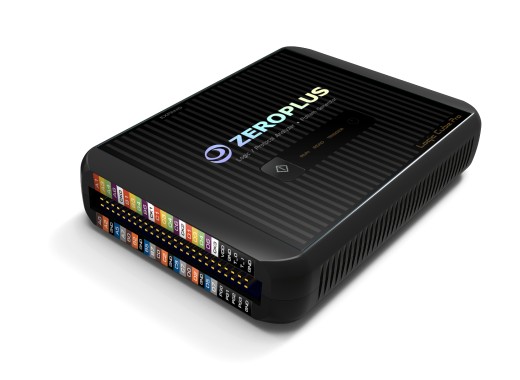

Zeroplus logic analyser LAP-C Pro series

These Zeroplus analysers offer the best of both worlds in the field of analysers. Some analysers offer 'unlimited' USB streaming of the data to a connected computer, other devices offer internal storage for limited logging the data. These devices offer both.
It's possible to use the internal memory of at least 1Gbit, or stream the data to a connected PC for limitless storage.

The analysers are available with up to 32 channels and a sample rate of 2GHz. This means in practice that almost all digital signals can be recorded and analysed without distortion and very precisely. Combining this with decoding of up to 128 different protocols, the large internal storage, various triggering options and broad and precisely configurable trigger thresholds makes the product very usable and competitive with the competition.

The installation file for the LAP-C analysers can be downloaded here.

The ZeroPlus DSO Module adds dual-channel oscilloscope functionality to the LAP-C Pro series, allowing you to capture and analyse analogue waveforms alongside digital logic signals in a single measurement session. Combine up to 2 DSO channels with up to 23 logic analyser channels for comprehensive mixed-signal debugging.

Models

The models in this series vary in a lot of specifications, the most important differences are listed below.

Specifications

Accessories

These devices in the LAP-C pro series come bundled with:

• USB Cable
• Measurement Cables
• Probe Clips
• Travel Bag
• User Manual

Downloads

LAP-C Pro Quick Start guide	(674.52 KB)	Download
LAP-C Pro Brochure	(589.05 KB)	Download
