The ZEISS Stemi 305 is a compact Greenough stereo microscope, combined with a continuous 5:1 zoom. The standard variant of this microscope features a binoculair microscope head assembly, but this can be upgraded to various different trinoculair assemblies. The Stemi 305 also features different stands, designed for educational, lab or even industrial applications. Each stand features different lightings and design, but can all be used with the Stemi 305 microscopes. These microscopes require little to no assembly, and therefore they are easy to work with and there are few accessories that can get lost.

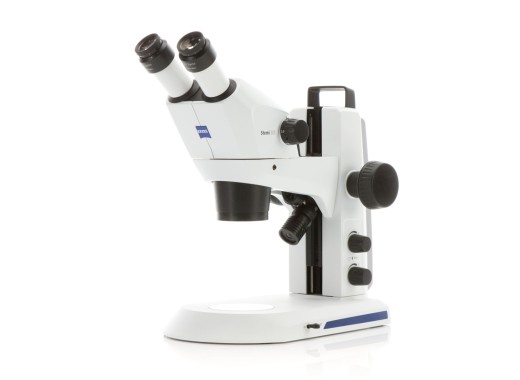

The ZEISS Stemi 305 EDU set is designed specifically for an academic environment, and consists of the following set-up:
The EDU set combines bottom illumination from the K EDU stand with the use of the Stemi K LED spot. The ZEISS Stemi K LED is a spot illuminator that is mounted on the K EDU base. This single spot illuminator is perfectly suited for brightfield and dark field epi-illumination. This LED is height adjustable and can be inclined for perfect lighting purposes.
Type of microscope | Stereo, Greenough design |
Lighting | Transmitted light, and spot light |
Magnification range | 0.8x - 4.0x |
Manual zoom | 5:1 |
Free working distance | 110 mm |
Maximum resolution | 200 Lp/mm - 2.5 μm |
Working surface | 160 x 195 mm |
Viewing angle | 45° |
Adjustment of interocular distance | 55 - 75 mm |
Dimensions standbase | 190 x 310 x 35 mm |
Weight | 4.6 kg |
For more specifications, please refer to the datasheet in the manual below.
ZEISS Stemi 305 manual |
(9.96 MB) | Download |
