Zeenko low noise RF amplifier
Details

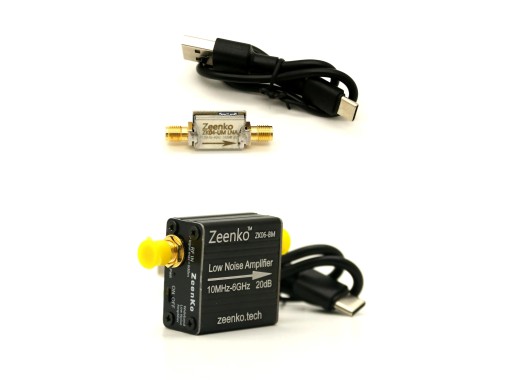

The Zeenko BM and UM series are RF low-noise amplifiers. The UM series provides a convenient power supply interface, moderate gain, a high IP3, and low noise. The UM is powered by a USB type-C interface, and the built-in high PSRR LDO can effectively reduce the power noise, which reduces the noise floor compared with other USB direct-feed modules.
The BM series is a USB-powered RF low-noise amplifier with a built-in battery. This model is based on the UM series and includes a battery and features reduced power consumption, making it suitable for portable use. Compared to other battery-powered amplifiers on the market, the BM series has a flatter and more consistent gain, lower noise figure, smaller size and a longer battery life.
Model overview
| Model | ZK05-UM | ZK06-UM | ZK09-UM | ZK04-BM | ZK05-BM | ZK06-BM | ZK09-BM |
|---|---|---|---|---|---|---|---|
| Frequency range | 100 kHz - 6 GHz | 10 MHz - 6 GHz | 100 kHz - 10 GHz | 100 kHz - 4 GHz | 100 kHz - 6 GHz | 10 MHz - 6 GHz | 100 kHz - 10 GHz |
| Max. output level | 18 dBm | 18 dBm | 13 dBm | 17 dBm | 18 dBm | 18 dBm | 13 dBm |
| Price |
Datasheet
For more detailed specifications and output levels per frequency, take a look at the datasheet at the bottom of the page. Descriptions of all the properties named in the datasheet are listed in the table below.
| Property | Description |
|---|---|
| Frequency range | The LNA can be used within this specified range. |
| Gain | Amplifier gain varies depending on the frequency. |
| NF (noise figure) | Represents the noise figure; lower values are better for performance. |
| OP1dB | Maximum output level before 1dB compression occurs. |
| OIP3 | Output 3rd-order interception point; theoretical indicator of linearity. |
| Supply current | Current consumption, important for understanding power requirements. |
Pros and cons
- Compact design
- Powered by USB
- Option with or without battery
Downloads
| Zeenko LNA datasheet |  (58.21 KB) | Download |
