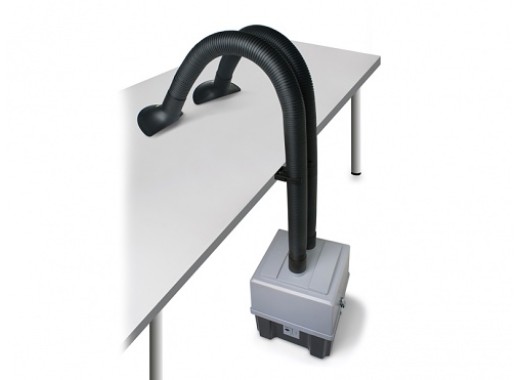

Weller ZERO-SMOG TL KIT 2 FN
Details
This Weller fine dust extractor has the ability to connect 2 extraction tubes simultaneously. This device is transportable and can be easily stored under a workbench. The suction tubes are flexible and have clamps, allowing them to be fixed to the workbench. Furthermore, the device has an adjustable pumping speed.
This extractor uses the prefilter F7, which filters fine dust particles from the air. This keeps fine dust particles out of the unit. This is followed by the compact dust filter H13 and a 10% activated carbon filter, which effectively filters the air. The unit also features an electronic system to monitor the filters and also has an alarm to indicate that the filters need to be replaced. The 2 filters are quickly and separately changeable. Due to the filter area of 2.4m2, the filters have a long life span.
Eleshop recommends you use an extractor during soldering, as toxins and fine dust particles are released during these processes.
Specifications
| Inlets | 2 |
| Power | 120 W |
| Airflow | 190 m3/h |
| Maximum fan vacuum | 3000 Pa |
| Speed control | IR remote, buttons |
| Filters | Prefilter: F7 fine dust filter Activated carbon + HEPA (H13) |
| Filter efficiency | 99.99% of particles >0.3 μm |
| Dimensions | 335 x 330 x 445 mm |
| Weight | 9 kg |
Accessories
This product comes with:
- 2 suction tubes
- 2 clamps for suction tube
- Remote control
- 2 Alfa funnel nozzles
Downloads
| Weller Zero Smog TL Kit 2 FN data sheet |  (171.95 KB) | Download |
| Weller extraction data sheet | (5.27 MB) | Download |
| Weller zero-smog user manual | (3.62 MB) | Download |
