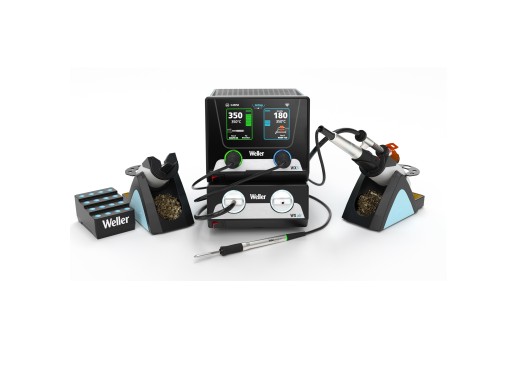

Weller WXsmart WXS2020 rework kit
Details
The WXS2012 rework kit is part of the Weller WXsmart series. It features the standard 300W dual channel control unit with easy-to-use color touchscreen. And also the WXair rework module with its integrated high performance rotary vane pump.
This station is connected to the 150W handpiece for the soldering tips. Furthermore the kit includes a large soldering smart-tip for heavy duty soldering tasks, a safety rest for the handpiece and a large tip holder, capable of holding up to 16 soldering tips.
All WXsmart soldering equipment have an extremely fast heat-up time of 7 seconds. Up to 10 parameter settings such as temperatures, smart-tip serial numbers and auto-off times can be customized and stored in the control unit. All WXsmart soldering stations feature TLS encryption, two-factor authentication (2FA) and protected software updates.
Specifications
| Power | 300 W (control unit) 150 W (handpiece) |
| Channels | 2 |
| Temperature range | 100 °C - 550 °C |
| Interface | 1x USB, 2x RS232, WLAN, LAN |
| ESD safe | Yes |
| Heat resistant | Yes |
| Automatic standby | Yes |
| Dimensions | 173 x 153 x 142 mm (control unit) |
| Weight | 4.5 kg (control unit) |
Accessories
The WXS2020 rework kit comes by default with:
- WXsmart control unit
- WXair rework module
- WXUPS handpiece
- RTUS032 soldering tip, chisel, 3,2 x 0,8mm
- WSR200 soldering iron holder
- WSR207 soldering tweezer holder
- WCTH tip holder
- Power cord
Pros and cons
- Integrated high performance rotary vane pump
- Easy to customize soldering parameters
- Easy to extend and customize
- High price
- Only one tip included
Downloads
| Weller WXsmart manual |  (5.45 MB) | Download |
| Weller WXsmart display manual | (13.86 MB) | Download |
| Weller WXair datasheet | (97.85 KB) | Download |
| Weller WXair manual | (9.62 MB) | Download |
| Weller WXS2020 datasheet | (455.2 KB) | Download |
