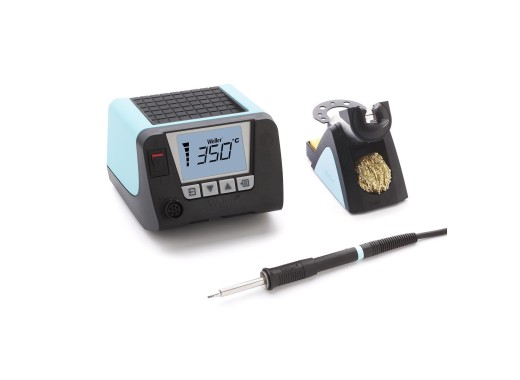

Weller WT1013 soldering station
Details
This Weller soldering station has a high power output of 95W. The WT 1013 offers digital adjustment options that make it easy and accurate to set up. The name Weller has been associated with high quality for many years now. The temperature of the soldering station can be set to 2% accuracy. The temperature range is adjustable in a broad range.
The soldering iron is ESD-safe and also safe to use thanks to the low voltage that powers the iron. This soldering station is delivered with a separate iron stand, where the soldering iron can be safely put.
Due to its capacitance of 95W, the soldering tip gets heated up very fast and can easily be used for soldering. This power is more than enough to heat medium-sized surfaces easily.
Different soldering tips for this station can be found via the blue button at the bottom of this page.
Specifications:
| Soldering power | 95 Watt |
| Temperature | 50 - 450 °C |
| Tip system | Passive |
| Temperature precision | ± 9 °C |
| Temperature stability | ± 2 °C |
| Automatic standby | Yes |
| ESD safe | Yes |
| Display | Backlit LCD |
| Dimensions | 149 x 138 x 101 mm |
| Weight | 1.9 kg |
Buy your spare WT1013 tips here
For more information and the specifications, please refer to the manufacturer's data sheet linked below.
Comes with:
- Basic station with temperature control
- Soldering iron (WP 80)
- Soldering iron stand
- LT B soldering tip (2.4 mm)
- Power cord
Pros and cons
- Industrial quality
- Passive heating system (slow)
Downloads
| Weller WT1013 datasheet |  (153.08 KB) | Download |
