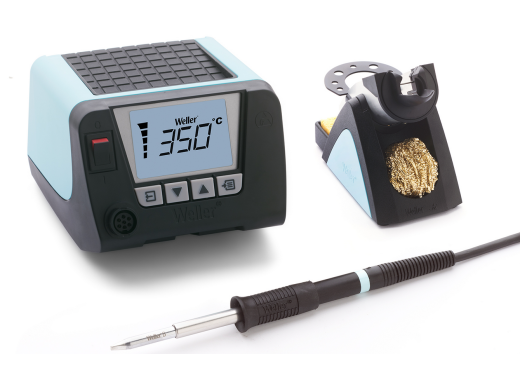

Weller WT 1010 soldering station
Details
The Weller WT 1010 soldering station is a versatile, beginner friendly station that has a power of 95W and uses passive soldering tips to transfer heat. The temperature of the soldering station ranges from 50°C - 450°C and the tips are able to achieve a temperature of 350°C within 12 seconds. The WT 1010 has a user-friendly interface and is backwards compatible with all the WD and WSD soldering irons; feel free to contact us if you want more information.
Specifications
| Power | 95 W |
| Temperature range | 50 °C - 450 °C |
| Heating time | ~ 12 sec (from 50 °C to 350 °C) |
| Tip system | Passive |
| ESD safe | Yes |
| Automatic standby | Yes |
| Dimensions | 150 x 130 x 101 mm |
| Weight | 1.9 kg |
The WTP 90 soldering iron is compatible with Weller XNT- and Weller XH series tips; it is possible to purchase these via the blue buttons below.
Buy your Weller XNT series tips here
Buy your Weller XH series tips here
Please note that the XH-series tips do fit the WT 1010, but are installed in a different way than the XNT-series. More information can be found in the user manual.
Accessories
The WX 1010 comes by default with:
- WSR 200 soldering iron holder
- WTP 90 soldering iron
- XNT A soldering tip chisel (1.6 x 0.4 mm)
- Power cord
Pros and cons
- User-friendly interface
- Possible to combine with the Weller Zero Smog fume extractor
- Can be stacked on top of the Weller WTHA 1 hot air station
- Passive tip
- High price
Downloads
| Weller WT general |  (1.6 MB) | Download |
| Weller WT manual | (5.54 MB) | Download |
