Weller WR3000MER rework station
Details

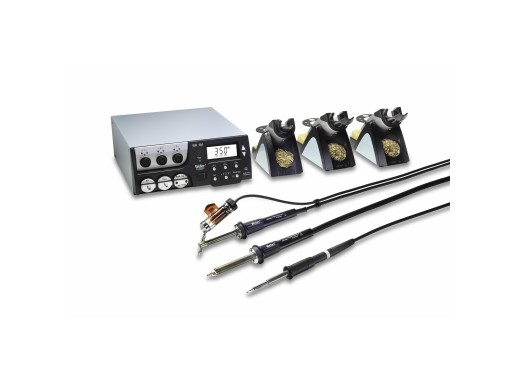

The Weller WR3000MER rework station features 3 different independently controllable tools with a combined power of 400W. The included tools are the HAP200 heat gun, DSX 120 desoldering iron and the WP 120 soldering iron. Each channel is individually controllable up to 550°C, and the modular system allows for the potential upgradability to a wide range of different tools. This station is ideal for those seeking a reliable SMD rework station with the ability to upgrade it for applications-specific tools rather than having to purchase another station for a specific rework task.
Specifications
| Power | 400 W |
| Temperature range | 50 °C - 550 °C |
| Heating time | ~ 14 sec |
| Tip system | Passive |
| Hot air flow rate | 15 L/min |
| Vacuum pressure | 600 mmHg |
| Flow rate | 18 L/min |
| ESD safe | Yes |
| Automatic standby | Yes |
| Dimensions | 280 x 240 x 103 mm |
| Weight | 7.3 kg |
Accessories
The WR3000MER comes with:
- 1x HAP 200 hot air iron
- 1x DSX 120 desoldering iron
- 1x WP 120 soldering iron
- 2x WDH 30 safety rest
- 1x WDH 10 safety rest
Pros and cons
- Modular
- Reliable
- High price
- Pickup tool not included
Downloads
| Weller WR3000MER datasheet |  (1.89 MB) | Download |
| Weller WR3000MER user manual | (8.7 MB) | Download |
