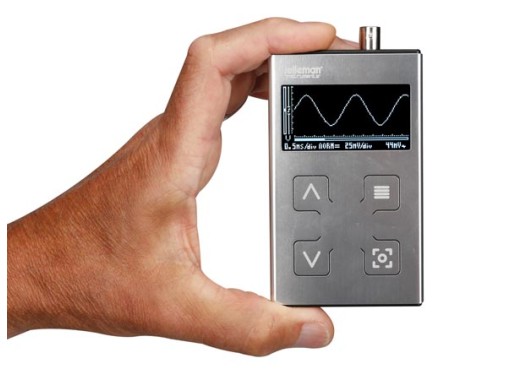

This HPS140MK2 is a pocket size isolated oscilloscope. Handheld and battery powered, this scope is mobile and yet very useful. With a frequency range up to 10MHz and a precision of 0.1 mV it is a device that can be used in multiple setups. The scope takes 40 Megasamples per second in real time and is therefore very precise. The AD converter has a resolution of 8 bits. Furthermore, the scope has a memory hold function with which data can be recorded. With an input amplitude range of 0.1 mV to 100 Vpp, the scope has a wide application range. In addition, the scope can be used for up to 8 hours on a full battery.
The scope has functions for determining DC, AC, true-rms, dBm, Vpp and Min-Max.
Frequency range | up to 10 MHz |
Sample rate | 40 Ms/s |
AD resolution | 8 bits |
Functions | DC, AC+DC,True RMS, dBm, Vpp, Min-Max. (±2.5%) Hold & store |
Vertical resolution | 0.1 mV - 20 V per Division |
Amplitude | max 100 Vpp |
Isolation | Class II |
Dimensions | 114 x 68 x 22 mm | Weight | 166 grams |
For more information, please refer to the Dutch-language user manual and the datasheet.
The HPS140MK2 only comes with a manual. A probe is not included. You can use the appropriate
as a probe.
