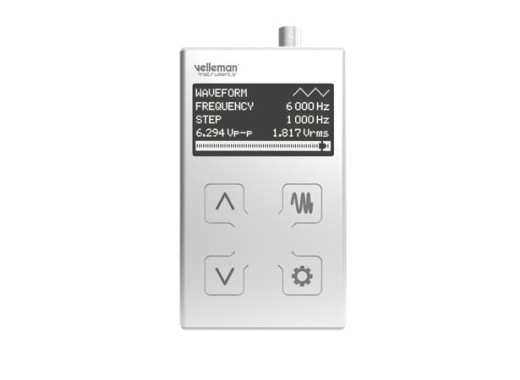

Velleman HPG1MK2 function generator
Details
This HPG1MK2 is a pocket size function generator. Handheld and battery powered, this function generator is mobile and yet very useful. With a frequency range up to 1MHz and a precision of ±0.01% it is a device that can be used in multiple setups. The function generator can generate sine, block and saw signals, and also has a sweep function.
With a maximum amplitude of 8 Vpp and a time/downtime of only 2 μs, this is a very capable handheld function generator.
Specifications
| Frequency range | 1 Hz - 1 MHz |
| Frequency steps | 1 Hz, 10 Hz, 100 Hz, 1 kHz en 10 kHz |
| Functions | sine, square, sawtooth Sweep |
| Amplitude range | 0.025 Vpp - 8 Vpp |
| Rise time | 0.2 µs |
| Output impedance | 50 Ω |
| Dimensions | 114 x 68 x 22 mm |
Accessories
The HPG1MK2 comes with the following accessories:
- User Manual (NL,EN,FR,DU,SP)
- BNC male plug to banana plug (2 x 4 mm) converter
- BNC - RCA converter
Downloads
| HPG1MK2 user manual |  (1.59 MB) | Download |
