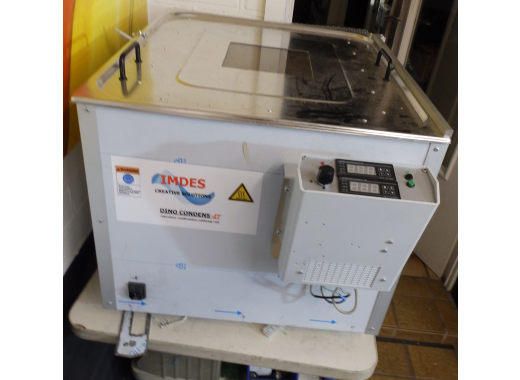

Imdes Vapour phase oven Dino Condens IT

The Imdes Dino Condens IT is a large vapour phase soldering furnace, suitable for PCB's with maximum dimensions of 580 x 460 x 20 mm. The Dino has an output of 2500 Watt and has a cycle time of 15-25 minutes. In addition, all Imdes vapour phase furnaces are equipped with a Profiler function, with which temperature profiles can be set.

What is vapour phase soldering?

Vapour phase is an alternative to IR reflow ovens. Vapour phase offers a better consistency in quality than small reflow ovens.

With vapour phase soldering, the PCB is submerged in hot Galden vapour. This vapour transfers heat to the PCB and melts the solder.

Because the Galden vapour is always at the same temperature, the process is very reliable. No components are overheated and no solderjoints are underheated.

How to use the Dino Condens-IT?

• Pour the right amount of Galden in the bottom of the container. You only need to do this the first time before use.
• Switch on the device.
• Place the ready-to-solder PCB on the grid.
• Close the lid and wait until the Standby LED is green.
• You can start the soldering process by pressing the start button.
• The Galden at the bottom of the container is now heated and the vapour will rise until above the PCB.
• When the device registers that the vapour has risen above the PCB, it will shut down the heating and it starts cooling the container with fans.
• The vapour will condense and will flow back into the bottom of the container.
• You can take out the soldered PCB now. Use protective gloves, because it is still hot.
• The whole process only takes about 10 minutes.

The Galden liquid needs to be purchased separately. You need a minimum of 1650 ml to use the Dino Condens-IT. Each soldering cycle a few ml of Galden gets used up.

Over use the Galden will get contaminated with solder residue. You can simply filter the Galden with a paper filter (like a coffee filter).

More information

Please don't hesitate to contact us in case you would like to have more information about the system. For example, we have an English (or Dutch or German) very detailed manual available, which we are happy to e-mail to you on request.
