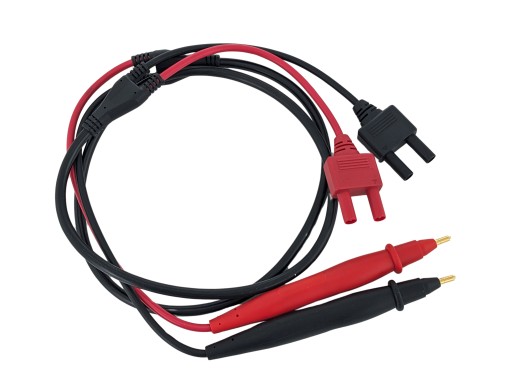

4-wire probes for battery testing and milliohm measurement

These probes are designed for low resistance measurement by hand. The typical application is measuring the internal resistance of a battery with a battery tester. They feature an inner pin with a spring and an outer ring, which are configured for 4-wire or Kelvin measurement. This minimizes the influence of contact resistance and pressure on the measurement.

The probes are connected to a meter by double banana plugs. The center to center distance between the two banana plugs is 19 mm. They can be used for batteries up to 60V DC.
