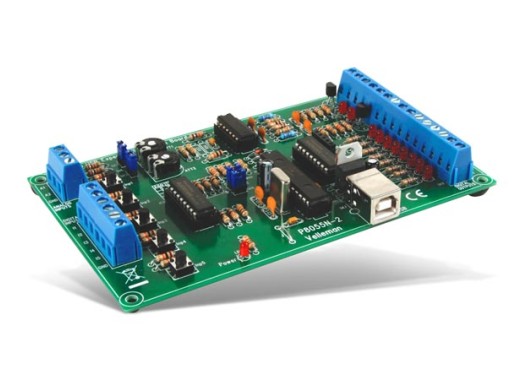

This advanced solder kit contains everything you need to make a USB experimenter interface card. With this card you interface a computer with the rest of the world via digital and analogue inputs/outputs.
The card is connected via USB and makes it possible to receive information from an experiment on the PC and to control components by means of a voltage or PWM signal. If you need more inputs/outputs it is possible to connect up to 4 cards to your PC.
All communication routines are in a DLL file and applications for Windows can be written in C++, Visual Basic or any other language a DLL can read.
Characteristics
- Diagnostic software/testing software
- Separate exit/entry test
- 'Clear all'/'Set all' function
- Counter function with adjustable dehumidification
- Analogue output with slider controls
- Analogue input with bar graph indication
- Minimum system requirements
- ≥ 1GHz, 32-bit/64-bit processor
- USB 1.1 connection or higher
- Windows XP or later
Specifications
| Digital inputs | 5, (0 = earth, 1 = open) |
| Analogue inputs | 2, (inclusief verzwakkings-/versterkingsoptie) |
| Digital open-collector output switches | 8, (max. 50V/100mA) |
| Analogue outputs | 2, (0-5V, PWM max. 40V/100mA) |
| Average conversion time | 2ms per command |
| Power by USB | ~70mA |
| Dimensions | 145 x 89 x 20 mm |
