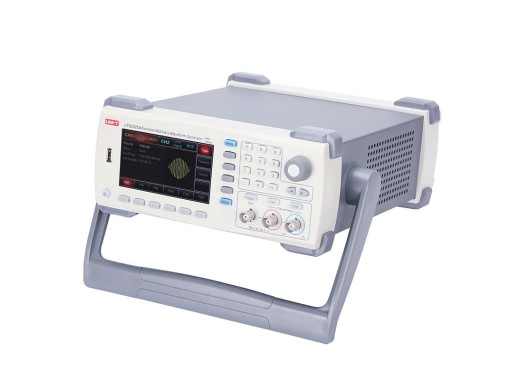

UNI-T UTG2025A function generator
Details
The UNI-T UTG2025A has a 4.3” LCD display. The function generator features two channels, which can be used independently of one another. With the standard five waveforms, signals can be generated with a maximum outfit frequency of 25 MHz and a voltage of 1 mVpp up to 10 Vpp. In addition to the standard waveforms, the function generator has the possibility to use arbitrary waveforms. These signals can be stored easily by using the USB cable and computer.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Specifications
| Channels | 2 |
| Output signals | Sine, Square, Ramp, Triangle, Pulse, Noise, DC, Arbitary |
| Frequency range (max.) | 25 MHz |
| Sample rate | 200 MSa/s |
| ARB memory depth | 1 Mpts |
| Vertical resolution | 14 bits |
| Amplitude range | 1 mVpp - 10 Vpp |
| Output impedance | 50 Ω |
| Signals | AM / FM / PM / ASK / FSK / PWM |
| Connectivity | USB |
| Display | 4.3" TFT LCD |
| Dimensions | 320 x 165 x 110 mm |
| Weight | 3.2 kg |
Accessories
The UNI-T UTG2025A comes with the following accessories:
- Power cord
- USB cable
- 2x BNC cable
Pros and cons
- Programmable by using PC
