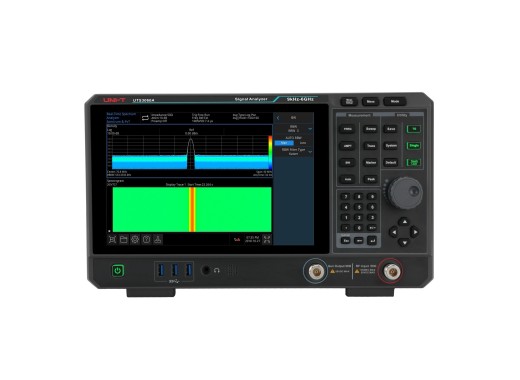

UNI-T UTS3060A real-time spectrum analyser
Details
The UNI-T UTS3060A is a real-time 6.0GHz spectrum analyser part of the UTS3000A series. The UTS3060A offers 40001 sweep points, which makes it easier to detect difficult signals. It is also well-suited for tests where signals are easily affected by noise, as the UTS3000A series features a low DANL of -165dBm and a good sensitivity. Additionally, the UTS3060A features a tracking generator and a high 10MHz RBW. However, this series only has a default real-time bandwidth of 10MHz, whereas most competitors at the same price point have 25MHz by default.
The UTS3000A series can be connected to a computer through USB and LAN interfaces and supports the SCPI programming protocol. It can also be remotely controlled using WebControl. The device features a 10.1" multi-touch, touchscreen LCD with a resolution of 1280x800 pixels, higher than its competition. Finally, the UTS3060A may also be easily upgraded with other software options, such as an I/Q analyser option, as well as an upgrade to 40MHz real-time bandwidth.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Models
| Model | UTS3036A | UTS3060A | UTS3084A |
|---|---|---|---|
| Bandwidth | 9 kHz - 3.6 GHz | 9 kHz - 6.0 GHz | 9 kHz - 8.4 GHz |
| Price |
Specifications
| RBW | 1 Hz - 10 MHz |
| DANL | -165 dBm/Hz |
| Amplitude accuracy | < 0.7 dB |
| Phase noise | < -100 dBc/Hz |
| Tracking generator | Yes |
| Interfaces | USB host/device, LAN, SCPI, HDMI, WebControl |
| Display | 10.1" TFT LCD (1280x800) |
| Dimensions | 378 x 218 x 120 mm |
| Weight | 4.96 kg |
Options:
- Advanced measurement option - UTS3000A-AMK
- EMI measurement option - UTS3000A-EMI
- Analog demodulation option - UTS3000A-AMA
- Vector signal analyser option - UTS3000A-VSA
- I/Q analyser option - UTS3000A-I/Q
- TDD-LTE demodulation analysis option - UTS3000A-TDD_LTE
- FDD-LTE demodulation analysis option - UTS3000A-FDD_LTE
- 40MHz Real-time bandwidth option - UTS3000A-B40
- New Radio 40MHz demodulation analysis option - UTS3000A-NR40
For more information on pricing, compatibility, or if you need help choosing the right configuration, please contact us.
Accessories
The UNI-T UTS3060A includes:
- Power cable
- USB cable
Pros and cons
- Included tracking generator
- 10 MHz RBW
- 40001 sweep points
- DANL up to -165 dBm
- Default real-time bandwidth of 10MHz
Downloads
| UNI-T UTS3000A user manual |  (5.68 MB) | Download |
| UNI-T UTS3000A datasheet | (2.18 MB) | Download |
